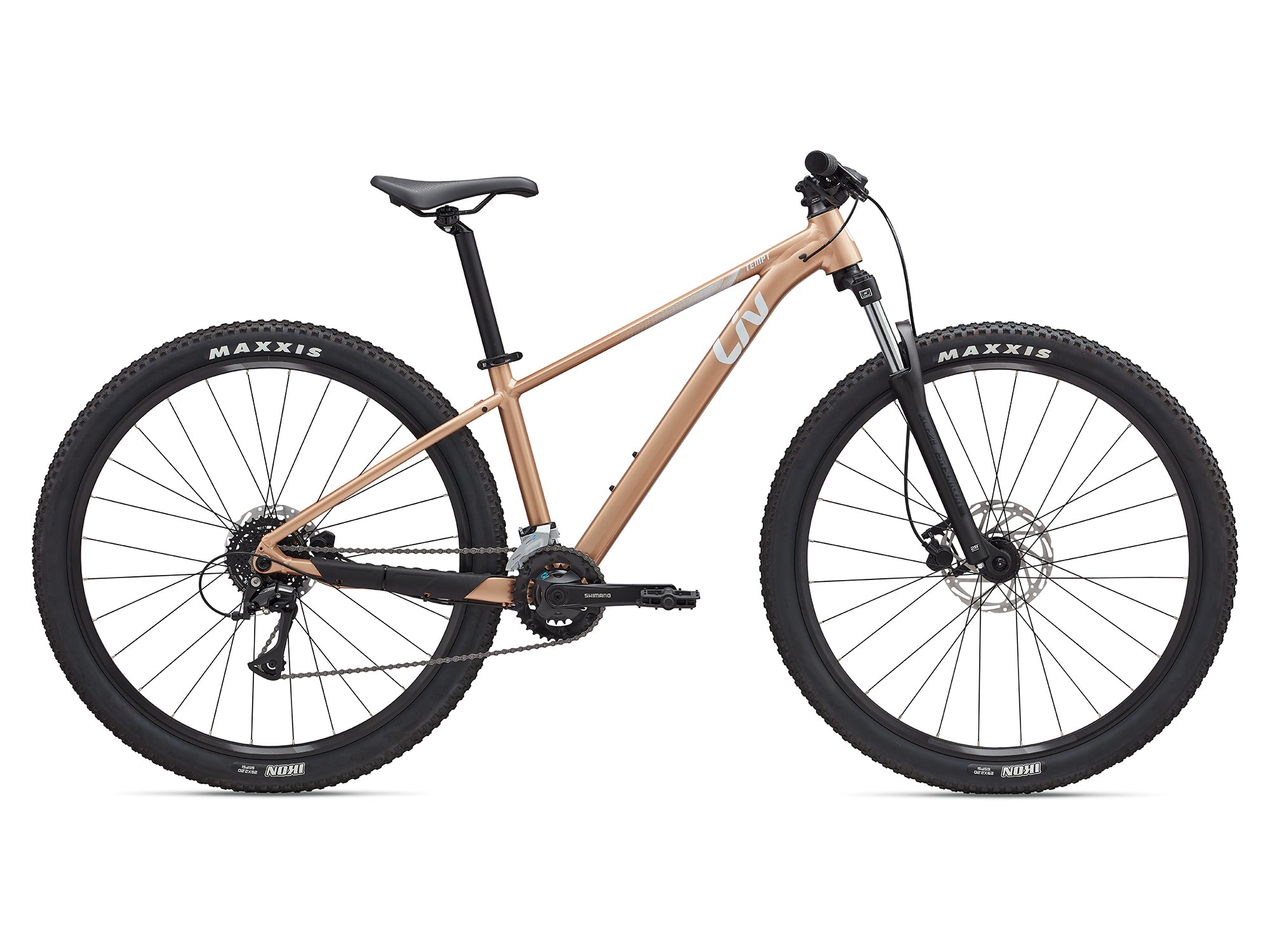

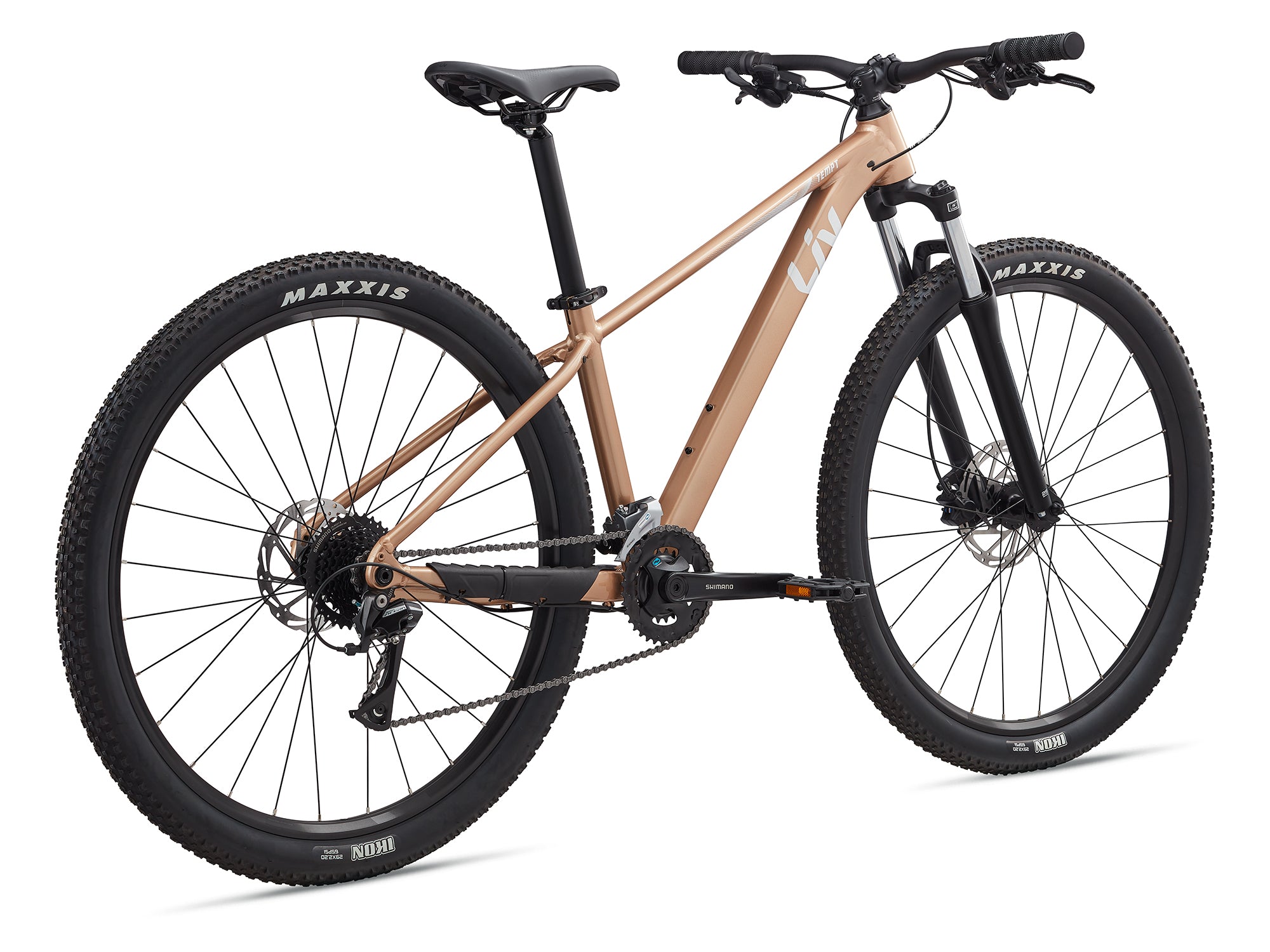

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.

KEY PERFORMANCE FACTORS

Modern MTB Design

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Light and Durable

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

SPECIFICATIONS

Sizes

27.5": XS, S
Colors

Golden Wheat (Gloss)
Frame

ALUXX-grade aluminum, disc
Fork

SR Suntour XCE, 1-1/8" steerer diameter, Rake: 42mm, Quick-release 100x9mm (XS: 80mm, S: 80mm)
Shock

N/A
Handlebar

Giant Connect Trail, 31.8mm (27.5" XS: 690mm, S: 690mm)
Grips

Giant Sole-O
Stem

Giant Sport, 7-degree (27.5" XS: 40mm, S: 40mm)
Seatpost

Giant Sport, 30.9mm diameter (27.5" XS: 350mm, S: 350mm)
Saddle

Contact Ergo
Pedals

MTB caged
Shifters

Shimano Altus, 2x8-speed, SL-M315
Front Derailleur

Shimano Altus, FD-M315-TS
Rear Derailleur

Shimano Acera, 8-speed, RD-M3020-8
Brakes

Tektro, HDC TKD 149, hydraulic disc brakes, Tektro rotors [F]180mm, [R]160mm
Brake Levers

Tektro HDC TKD 149, Hydraulic, for smaller hands
Cassette

Shimano Altus, CS-HG31-8,11-34T
Chain

KMC 8.3
Crankset

Shimano Altus, FC-M315-2, 36-22T, 48.8mm chainline (27.5" XS: 165mm, S: 165mm)
Bottom Bracket

cartridge
Rims

27.5": Giant GX03V 27.5", alloy, double wall, 21mm inner width 29": Giant GX03V 29", alloy, double wall, 21mm inner width
Hubs

alloy, sealed bearing
Spokes

stainless, 14g
Tires

Maxxis Ikon, 27.5x2.25", 60tpi wire bead
Extras

2.4" max tire size, max chainring 32T
Weight
~

*All specifications and prices listed are subject to change without notice.

Sizing & Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Tempt (4th Gen)

		XS (27.5")	S (27.5")
A	SEAT TUBE LENGTH (mm)	330	365
A1	SEAT POST INSERTION DEPTH (mm)	280	310
B	SEAT TUBE ANGLE	74.0°	74.0°
C	TOP TUBE LENGTH (mm)	538	558
D	HEAD TUBE LENGTH (mm)	90	95
E	HEAD TUBE ANGLE	67.0°	67.0°
F	FORK RAKE (mm)	44	44
G	TRAIL (mm)	105.2	105.2
H	WHEELBASE (mm)	1080	1101
I	CHAIN STAY LENGTH (mm)	440	440
J	BOTTOM BRACKET DROP (mm)	45	45
K	STACK (mm)	548	553
L	REACH (mm)	381	400
M	STAND OVER HEIGHT (mm)	680	689
N	HANDLEBAR WIDTH (mm)	690	690
O	STEM LENGTH (mm)	40	40
P	CRANK LENGTH (mm)	165	165
Q	WHEEL SIZE	27.5"	27.5"
