Home > Shop > Bikes & Frames > GIANT REVOLT ADVANCED 2 (3RD GEN)

Giant

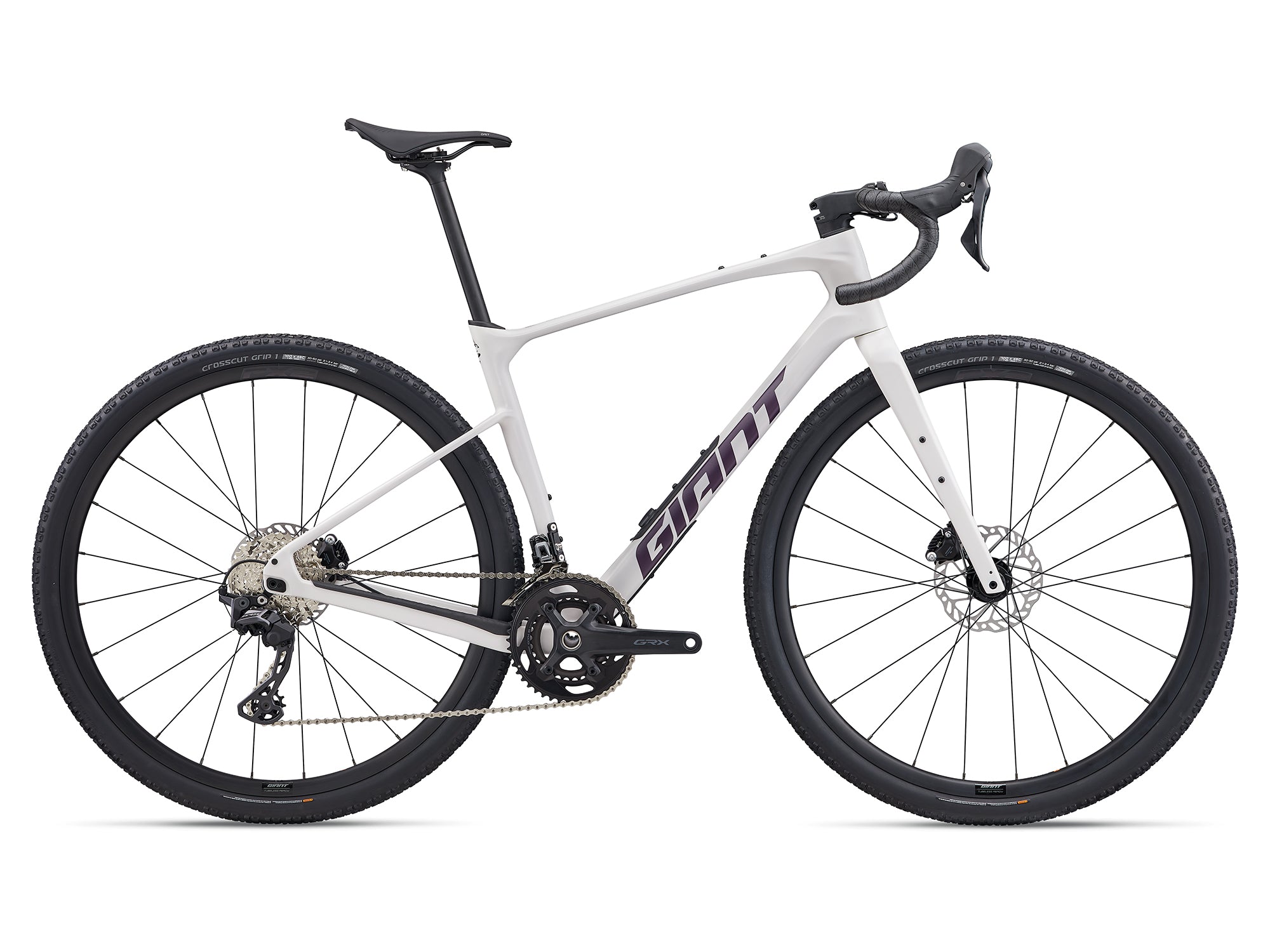

GIANT REVOLT ADVANCED 2 (3RD GEN)

$3,400.00

3 payments of $1,133.33 with

Color: Lavender Blush

Lavender Blush

Size: XS

XS S M ML L

Product variants

Quantity

Pickup currently unavailable at Tay Junction @ Bukit Timah

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.

Highlight

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light

New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance

New frame features thinner, dropped seat stays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS

Sizes

XS, S, M, M/L, L, XL
Colors

Lavender Blush
Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar

Giant Contact XR D-Fuse, 31.8mm
XS-S: 42cm
M-M/L: 44cm
L-XL: 46cm
Grips

Stratus Lite 3.0
Stem

Giant Contact AeroLight, -10 degree
XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Post Moderne, dropper, 30.9mm, 30mm suspension
XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Saddle

Giant Grit
Shifters

Shimano GRX ST-RX610 HRD, 2x12-speed
Front Derailleur
Shimano GRX FD-RX820
Rear Derailleur

Shimano GRX RD-RX820
Brakes

Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano GRX ST-RX610
Cassette

Shimano CS-HG710 11-36T
Chain

KMC X12L-1
Crankset

Shimano FC-RX610, 46/30T
XS-S: 170mm
M-M/L: 172.5mm
L-XL: 175mm
Bottom Bracket

Shimano Press Fit, BB72-41B
Rims

Giant P-X2 Disc wheelset, alloy
Hubs

Giant alloy, 12mm thru-axle
Spokes

Sapim
Tires

Giant Crosscut Grip, 700x45c, tubeless
Extras

Giant 1x chain guide, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Revolt Advanced & Advanced Pro (3rd Gen)

		S (Short \| Long)	M (Short \| Long)	ML (Short \| Long)	L (Short \| Long)	XL (Short \| Long)
A	Seattube length	450	470	490	510	530
B	Seattube angle (degrees)	73.50	73.50	73.00	73.00	73.00
C	Toptube length	550	560	575	585	600
D	Headtube length	135	150	165	180	195
E	Headtube angle (degrees)	71.00	71.50	72.00	72.00	72.00
F	Fork rake	50	50	50	50	50
G	Trail	72 \| 75	68 \| 72	65 \| 68	65 \| 68	65 \| 68
H	Wheelbase	1020 \| 1030	1026 \| 1036	1031 \| 1041	1041 \| 1051	1056 \| 1066
I	Chainstay length	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
J	Bottom bracket drop	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81
K	Stack	570	586	602	616	630
L	Reach	381	387	391	397	407
M	Standover height	740 \| 747	757 \| 764	774 \| 780	791 \| 797	807 \| 814
N	Handlebar width	420	440	440	460	460
O	Stem length	60	70	80	80	90
P	Crank length	170.0	172.5	172.5	175.0	175.0
Q	Wheel size	700C	700C	700C	700C	700C
