Highlight

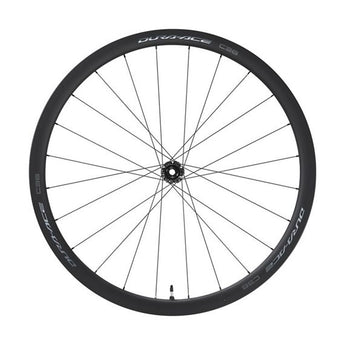

With stunning acceleration, the new DURA-ACE R9270 C36 wheelset will change the way you experience climbs, corners, even stop lights. This is because it isn't just how much a wheel weighs but where the weight is on the wheel that matters. The all-new C36 design shaves mass at every opportunity but especially at the rim. The result is a lively wheelset that can transform your ride.
With both a lighter, wider all-carbon rim and a lighter hub, the new DURA-ACE C36 won't shy away from a day of climbing. The new rim is 36 mm deep and still delivers good aerodynamic efficiency despite its gossamer weight. Meanwhile the hub features an alloy FREEHUB body and new engagement mechanism for increased rigidity.
SPECIFICATIONS
| Rear | Front | |
| Series | DURA-ACE R9200 Series | DURA-ACE R9200 Series |
| Average Weight | 730g | 620g |
| Brake type | CENTER LOCK disc brake | CENTER LOCK disc brake |
| Axle fixing method | 12 mm E-THRU | 12 mm E-THRU |
| O.L.D. (mm) | 142 | 100 |
| Rear speeds | 12 | - |
| Thru Axle | 142X12MM | 100X12MM |
| Compatible spoke protector | CP-WR92C | |
| D2 rim | ✔ | |
| Disc mount_140 mm Disc brake rotor compatible | ✔ | |
| Disc mount_CENTER LOCK | ✔ | |
| Front/Rear | Rear | Front |
| OPTBAL (2:1) | ✔ | ✔ |
| Spokes_Bladed | ✔ | ✔ |
| Spokes_Butted | ✔ | ✔ |
| Spokes_Number | 24 | 24 |
| Tire_Recommended size | 25-622 - 32-622 | 25-622 - 32-622 |
| Tire_Type | Tubeless | Tubeless |
| Wheel Size | 622 x 21C | 622 x 21C |
| Color_1 Hub shell | Series Color | Series Color |
| Spline type_HG spline L2 (ROAD 12-speed dedicated) | ✔ | - |
| Model name | WH-R9270-C36-TL-R | WH-R9270-C36-TL-F |
| Engagement type | Direct engagement | - |
| Rim_External width (mm) | 28 | 28 |
| Rim_Internal width (mm) | 21 | 21 |
| Spokes_Diameter (mm) | 2.0-1.5-2.0 | 2.0-1.5-2.0 |
