Highlight

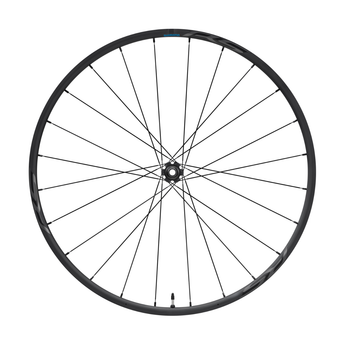

SHIMANO 105 - Tubeless - 19 mm Rim Depth - Disc Brake - 12 mm Thru Axle - Front Wheel
From gravel to tarmac, the 105 RS370 tubeless wheels support wider tires for mixed surface riding. Delivering exceptional value and reliability thanks to trickle down technology from DURA-ACE and ULTEGRA, the lightweight 19 mm RS370 rims are complimented by CENTER LOCK disc brake hubs, providing confident braking in all conditions.
FEATURES
SPECIFICATIONS
| MODEL NO | WH-RS370-TL-F12 |
|---|---|
| SERIES | SHIMANO 105 R7000 Series |
| Color | Black |
| Average weight | 890 |
| Spokes_Straight pull | ✔ |
|---|---|
|
Brake type |
Disc brake |
| Axle fixing method | 12 mm E-THRU |
| Internal grease sleeve | ✔ |
| O.L.D. (mm) | 100 |
| Thru axle (length x inner diameter ; mm)_100 x 12 | ✔ |
| Disc mount_140 mm Disc brake rotor compatible | ✔ |
| Disc mount_CENTER LOCK | ✔ |
| Front/Rear | Front |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Height (mm) | 19 |
| Rim_Requires rim tape | ✔ |
| Rim_Rim joint | Welded |
| Seal_Hub | Contact |
| Spokes_Number | 24 |
| Tire_Recommended size | 28-622 - 45-622 |
| Tire_Type | Tubeless |
| Wheel Size | 622 x 19C |
| Color_1 Hub shell | Black |
| Model name | WH-RS370-TL |
| Rim_External width (mm) | 23.4 |
| Rim_Internal width (mm) | 19 |
| Spokes_Diameter (mm) | 2.0-1.8-2.0 |
| Specification |
F12 |
| MODEL NO | WH-RS370-TL-R12 |
|---|---|
| SERIES | SHIMANO 105 R7000 Series |
| Color | Black |
| Average weight | 1090 |
| Remarks | * The adapter is needed to use 10-speed cassette sprocket |
|---|---|
| Spokes_Straight pull | ✔ |
| Brake type | Disc brake |
| Axle fixing method | 12 mm E-THRU |
| Internal grease sleeve | ✔ |
| O.L.D. (mm) | 142 |
| Rear speeds | 11/10* |
| Thru Axle (Length x Inner diameter ; mm)_142 x 12 | ✔ |
| Compatible spoke protector | CP-FH08 (23T-28T 11-speed) CP-WH41 (23-30T 10-speed) CP-WH12 (32T 11/10-speed) |
| Disc mount_140 mm Disc brake rotor compatible | ✔ |
| Disc mount_CENTER LOCK | ✔ |
| Front/Rear | Rear |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Height (mm) | 19 |
| Rim_Requires rim tape | ✔ |
| Rim_Rim joint | Welded |
| Seal_FREEHUB body | Contact |
| Seal_Hub | Contact |
| Spokes_Number | 24 |
| Tire_Recommended size | 28-622 - 45-622 |
| Tire_Type | Tubeless |
| Wheel Size | 622 x 19C |
| Color_1 Hub shell | Black |
| HG spline (ROAD 11-speed) | ✔ |
| Model name | WH-RS370-TL |
| Rim_External width (mm) | 23.4 |
| Rim_Internal width (mm) | 19 |
| Spokes_Diameter (mm) | 2.0-1.8-2.0 |
| Specification | R12 |
