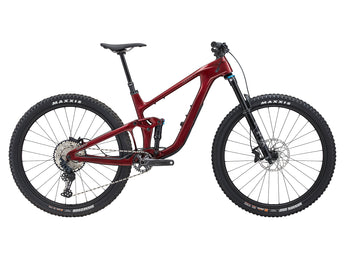

FLOAT UP TECHNICAL CLIMBS AND SAIL DOWN CHUNKY DESCENTS. THIS ALL-NEW, FULL-COMPOSITE TRAIL BIKE GIVES YOU 140MM OF SMOOTH MAESTRO REAR SUSPENSION AND ALL SORTS OF ADJUSTABILITY. YOU CAN DIAL IN FRAME GEOMETRY AND SWITCH THE REAR WHEEL SIZE FOR THE TERRAIN.
KEY PERFORMANCE FACTORS
More Travel
New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
Adjustable Trail Geometry
A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
Mixed Wheel Sizes
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
SPECIFICATIONS
-
SizesS, M, L
-
ColoursSangria
-
FrameAdvanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage
-
ForkFox 36 Float Rhythm, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset
-
ShockFox Float Performance, 185/52.5, custom tuned for Giant
-
HandlebarGiant Contact TR35, alloy, 20mm rise
-
GripsGiant Tactal Pro Single Lock-On, 132x35mm
-
StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
-
SeatpostContact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
-
SaddleGiant Romero SL
-
PedalsN/A
-
ShiftersShimano SLX M-7100, I-Spec EV, 1x12
-
Front DerailleurN/A
-
Rear DerailleurShimano SLX M-7100
-
BrakesShimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
-
Brake LeversShimano Deore BL-M6100
-
CassetteShimano SLX M7100, 10x51
-
ChainKMC X-12
-
CranksetShimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
-
Bottom BracketShimano Press Fit
-
RimsGiant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
-
Hubs[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
-
SpokesSapim, 28, straight pull, DBL Technology
-
Tires[F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
-
ExtrasTubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
- Weight
~14.30kg (Size M)
*All specifications and prices listed are subject to change without notice.
