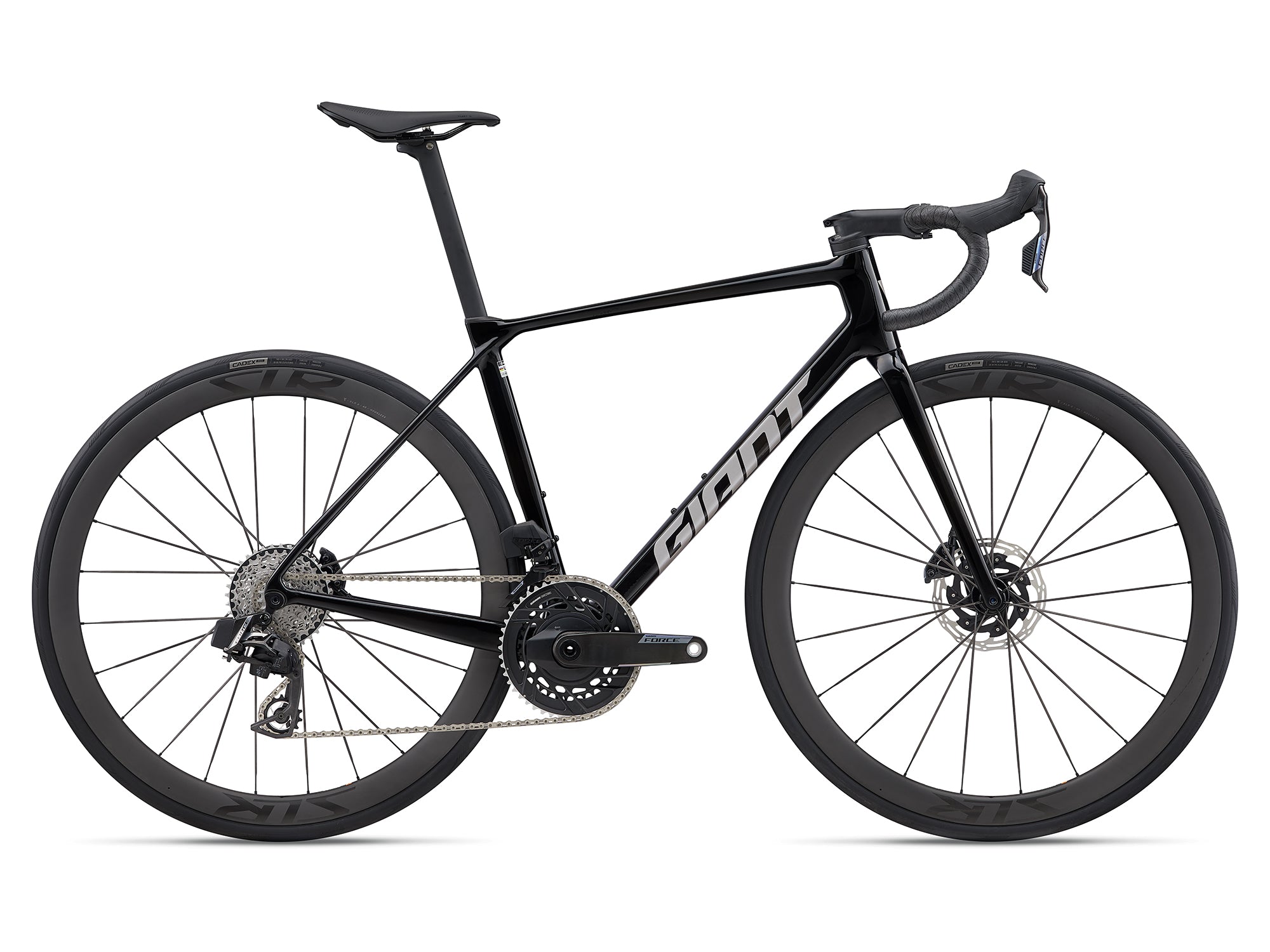

GIANT TCR ADVANCED PRO 0 - SRAM FORCE (10TH GEN)

$8,500.00

In-Stock Pre-order Out of stock
Tax included. Shipping calculated at checkout.

Color: Carbon

  • Carbon

Size: ML

  • S
  • M
  • ML
Add to Wishlist

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.

Vendor: Giant
Specifications

This versatile road racer combines race-winning stiffness-to-weight with aerodynamic tube shaping and system integration. From the road-smoothing Variant seatpost to the composite WheelSystem, every piece is made to perform better as a system. The new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate new internal cable routing for easy setup and adjustment, while integrated disc brakes and generous clearance for tyres up to 33mm make it adaptable to all road conditions

KEY PERFORMANCE FACTORS

System Optimization

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology
is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more
aerodynamic, user-friendly setup

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike
delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset
tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous
generation.

SPECIFICATIONS
  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Carbon
  • Frame
    Advanced-Grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SLR (XS:37/40cm, S:37/40cm, M:39/42cm, M/L:39/42cm, L:41/44cm, XL:41/44cm)
  • Grip
    Stratus Lite 2.0
  • Stem
    Giant Contact SL AeroLight (XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm)
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Fleet SL
  • Pedals
    N/A
  • Shifters
    SRAM Force AXS E1, 2x12-speed
  • Front Derailleur
    SRAM Force AXS E1
  • Rear Derailleur
    SRAM Force AXS E1, Max 36T
  • Brakes
    SRAM Force AXS E1, SRAM Centerline XR rotors [F]160mm, [R]140mm
  • Brake Levers
    SRAM Force AXS E1
  • Cassette
    SRAM Force E1, 10x36T
  • Chain
    SRAM Force E1
  • Crankset
    SRAM Force E1 DUB, 48/35T with Quarq thread mount power meter
    XS-S: 165mm
    M-M/L: 170mm
    L-XL: 172.5mm
  • Bottom Bracket
    SRAM DUB, PF86.5
  • Rims
    Giant SLR 0 40 WheelSystem, hookless rim, [F]40mm, [R]40mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle
    [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Giant Aero Carbon Spoke
  • Tyres
    CADEX Race GC, tubeless, 700x30c, folding
  • Extras
    computer mount, Airway Eco Composite water bottle cage, tubeless prepared, 33mm max tyre size

*All specifications and prices listed are subject to change without notice.

    Sizing & Geometry

    Sizing Guide and Geometry

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary by country.

    TCR Advanced & Advanced Pro Disc (10th Gen)
    		XS S M ML L XL
    A Seat tube length 425 445 470 500 530 560
    B Seat tube angle (degrees) 74.50 74.00 73.50 73.00 73.00 72.50
    C Top tube length 520 535 550 565 580 600
    D Head tube length 120 130 145 165 185 200
    E Head tube angle (degrees) 71.00 72.25 73.00 73.00 73.00 73.00
    F Fork rake 45 45 45 45 45 45
    G Trail 72 64 59 59 59 59
    H Wheelbase 976 977 980 991 1006 1020
    I Chain stay length 405 405 405 405 405 405
    J Bottom bracket drop 72 69.5 69.5 67 67 67
    K Stack 517 528 545 562 581 596
    L Reach 376 383 388 393 402 412
    M Stand over height 703 722 743 771 798 822
    N Handlebar width 400 400 420 420 440 440
    O Stem length 80 90 100 110 110 120
    P Crank length 170.0 170.0 172.5 172.5 175.0 175.0
    Q Wheel size 700C 700C 700C 700C 700C 700C
    *All measurements shown are in millimetres unless otherwise stated.
