MODERN MOUNTAIN BIKE TRAILS ARE FUN, FLOWY AND CHALLENGING. THIS FULL-SUSPENSION 29ER GETS YOU IN SYNC WITH THE TERRAIN, SO YOU CAN RIDE WITH MORE CONFIDENCE AND HAVE MORE FUN.

KEY PERFORMANCE FACTORS

Attainable trail performance

Handcrafted with lightweight, stiff and durable ALUXX aluminum, it’s the perfect entry to full-suspension performance.

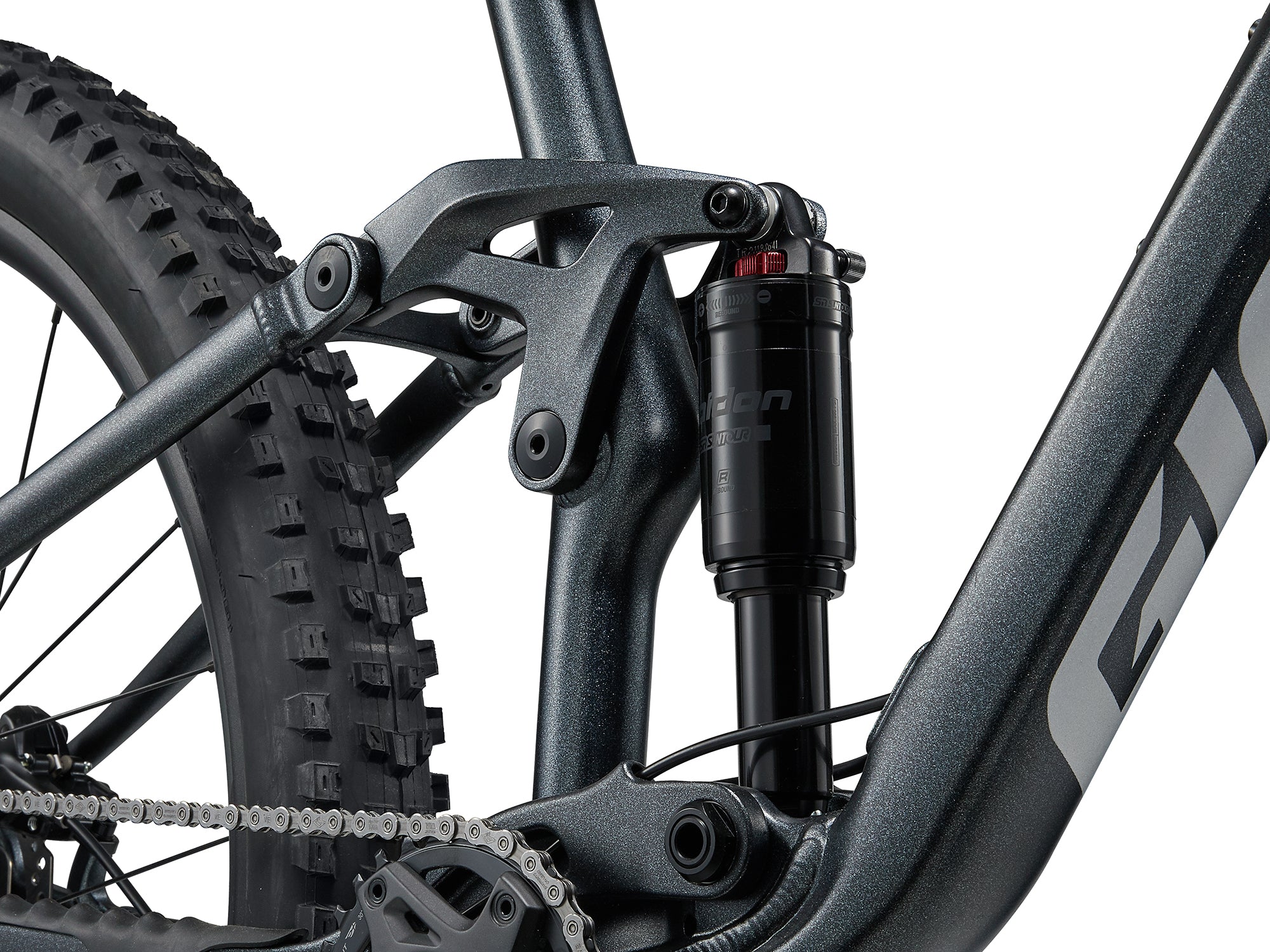

Smooth suspension

FlexPoint Suspension technology helps you tackle challenging terrain and improve your trail riding capabilities.

29er confidence and control

Larger diameter wheels roll over rugged terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on singletrack descents.

SPECIFICATIONS

Sizes

M, L, XL
Colours

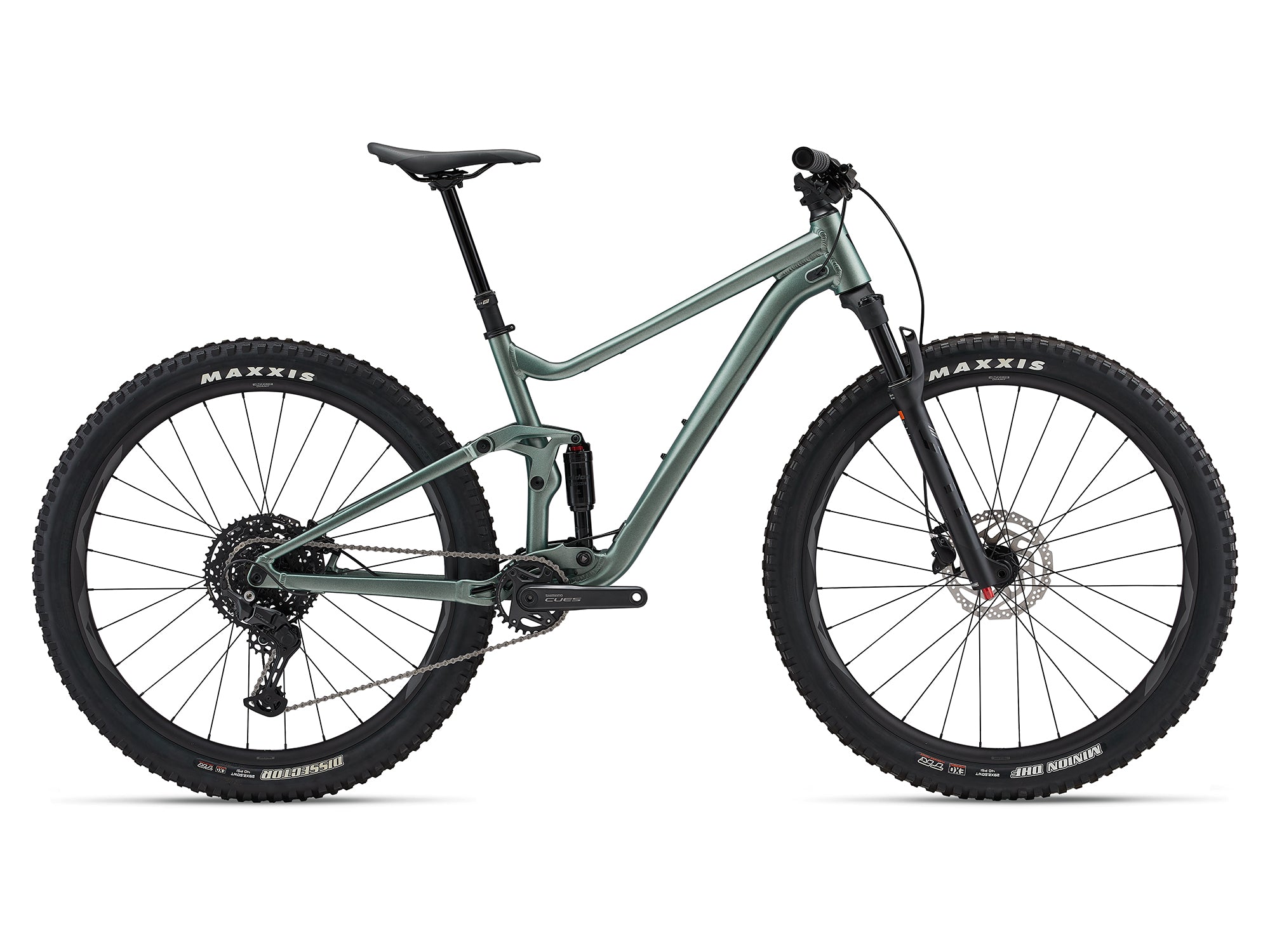

Black Diamond, Misty Forest
Frame

ALUXX-grade aluminum, 125mm FlexPoint suspension, 12x148mm thru-axle

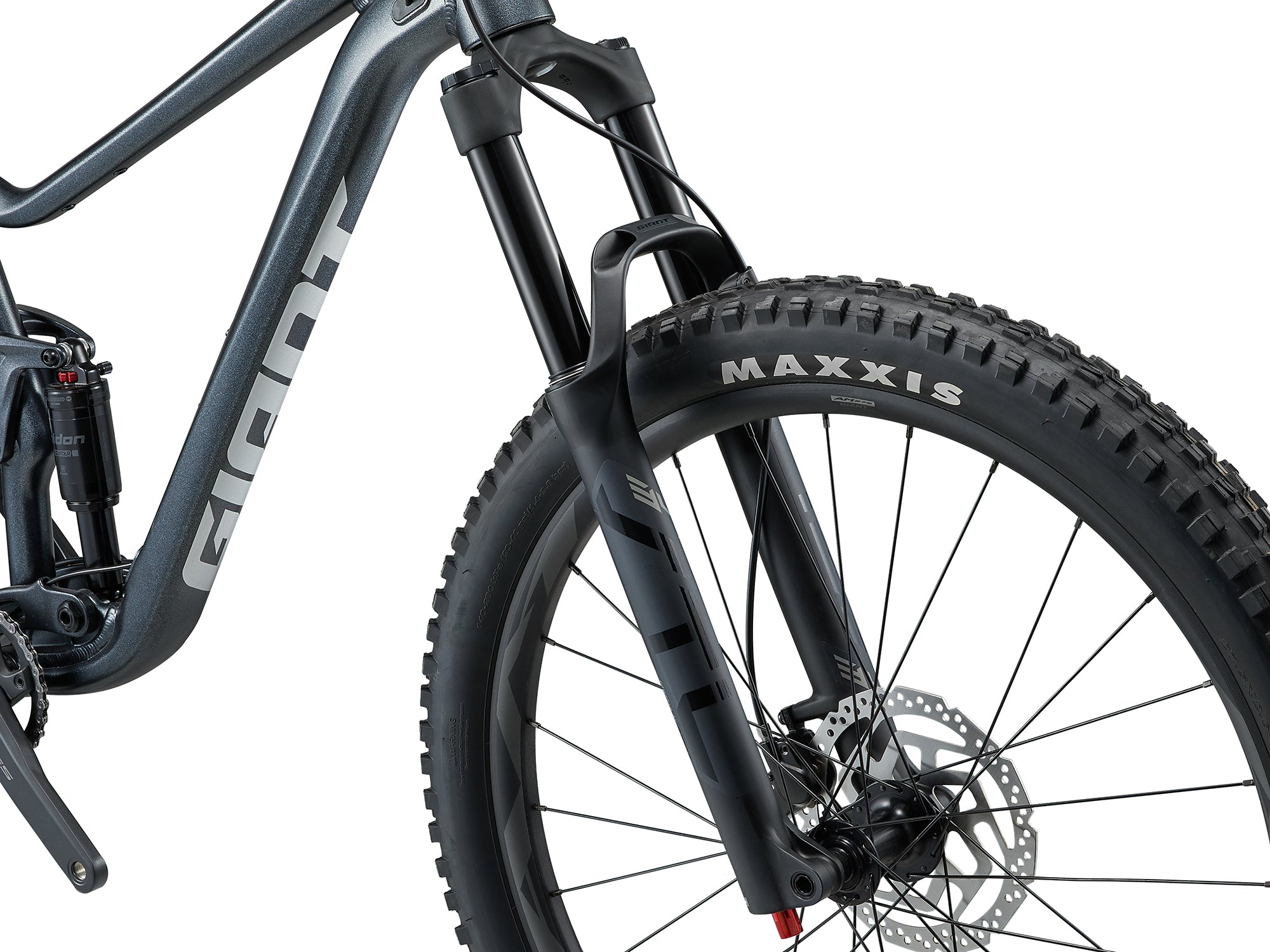

Fork

Giant STL 34 RCL, 140mm, Boost 15x110 QR, custom tuned for Giant
Shock

Suntour Raidon R, 190x45
Handlebar

Giant Contact SL TR35, 780x35mm
Grips

Giant Sole-O
Stem

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost

Giant Contact Switch AT dropper, remote
M: 170mm - 140mm travel / 30.9 x 470mm
L: 200mm - 170mm travel / 30.9 x 530mm
XL: 200mm - 170mm travel / 30.9 x 530mm
Saddle

Giant Romero
Pedals

N/A
Shifters

Shimano CUES SL-6000-10R, 1x10
Front Derailleur

N/A
Rear Derailleur

Shimano CUES RD-U6000
Brakes

Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers

Shimano BL-MT201
Cassette

Shimano CUES CS-LG300, 11x48
Chain

Shimano CUES CN-LG500
Crankset

Shimano CUES FC-U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

Shimano, threaded
Rims

Giant AM 29 alloy, tubeless ready
Hubs

[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport QR141, loose ball
Spokes

Sapim
Tires

[F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless
Extras

tubeless prepared, max tire size 2.4", max chainring size 32t

*All specifications and prices listed are subject to change without notice.

Sizing & Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Stance 29 (4th Gen)

		M	L	XL
A	Seattube length	425	450	475
A1	Seatpost Insertion Depth	242	268	293
B	Seattube angle (degrees)	76.5	76.5	76.5
C	Toptube length	595	622	654
D	Headtube length	110	120	125
E	Headtube angle (degrees)	65.5	65.5	65.5
F	Fork rake	44	44	44
G	Trail	124.4	124.4	124.4
H	Wheelbase	1198	1227	1260
I	Chainstay length	440	440	440
J	Bottom bracket drop	40	40	40
K	Stack	623	632	636
L	Reach	445	470	500
M	Standover height	734	753	758
N	Handlebar width	780	780	780
O	Stem length	40	50	50
P	Crank length	170.0	170.0	170.0
Q	Wheel size	29"	29"	29"
