FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light

New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance

New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS

Sizes

XS, S, M, M/L, L, XL
Colors
Panther, Golden Haze
Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock

N/A
Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips

Stratus Lite 3.0
Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, composite, 14mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

Shimano GRX RX-610 HRD, 2x12-speed
Front Derailleur

Shimano GRX RX-820
Rear Derailleur
Shimano GRX RX-820
Brakes

Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano GRX RX-610 HRD
Cassette

Shimano CS-HG710 11-36T
Chain
KMC X12L-1
Crankset
"FSA Omega Modular AGX+, 48/32T
or
Shimano FC-RX610, 46/30T
XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

FSA BB-AL86 or Shimano Press Fit
Rims

Giant P-X2 Disc wheelset
Hubs

Giant P-X2 Disc wheelset
Spokes

Giant P-X2 Disc wheelset
Tires

Maxxis Rambler/Ravager TR 700X40C
Extras

tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position

*All specifications and prices listed are subject to change without notice.

Sizing & Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Revolt Advanced & Advanced Pro

		XS (Short \| Long)	S (Short \| Long)	M (Short \| Long)	ML (Short \| Long)	L (Short \| Long)	XL (Short \| Long)
A	Seattube length	430	450	470	490	510	530
B	Seattube angle (degrees)	74.00	73.50	73.50	73.00	73.00	73.00
C	Toptube length	540	550	560	575	585	600
D	Headtube length	125	135	150	165	180	195
E	Headtube angle (degrees)	70.00	71.00	71.50	72.00	72.00	72.00
F	Fork rake	50	50	50	50	50	50
G	Trail	78 \| 82	72 \| 75	68 \| 72	65 \| 68	65 \| 68	65 \| 68
H	Wheelbase	1024 \| 1034	1020 \| 1030	1026 \| 1036	1031 \| 1041	1041 \| 1051	1056 \| 1066
I	Chainstay length	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
J	Bottom bracket drop	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81
K	Stack	556	570	586	602	616	630
L	Reach	381	381	387	391	397	407
M	Standover height	724 \| 731	740 \| 747	757 \| 764	774 \| 780	791 \| 797	807 \| 814
N	Handlebar width	420	420	440	440	460	460
O	Stem length	50	60	70	80	80	90
P	Crank length	170.0	170.0	172.5	172.5	175.0	175.0
Q	Wheel size	700C	700C	700C	700C	700C	700C

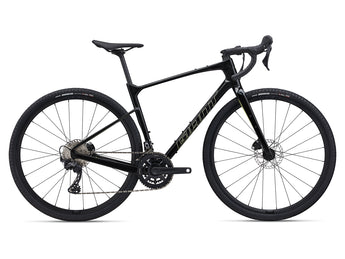

GIANT REVOLT ADVANCED 2 (GRX-820)
