Giant

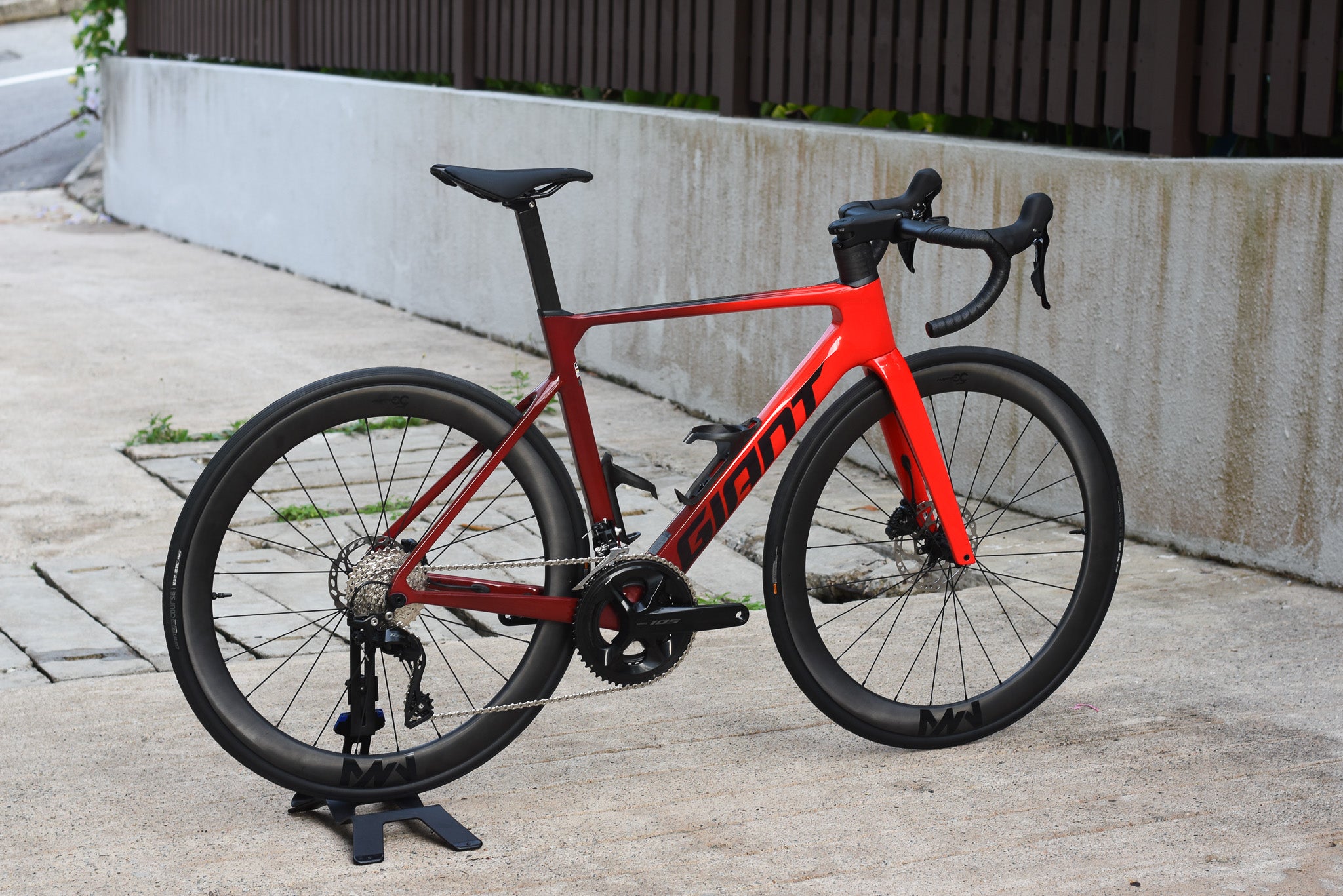

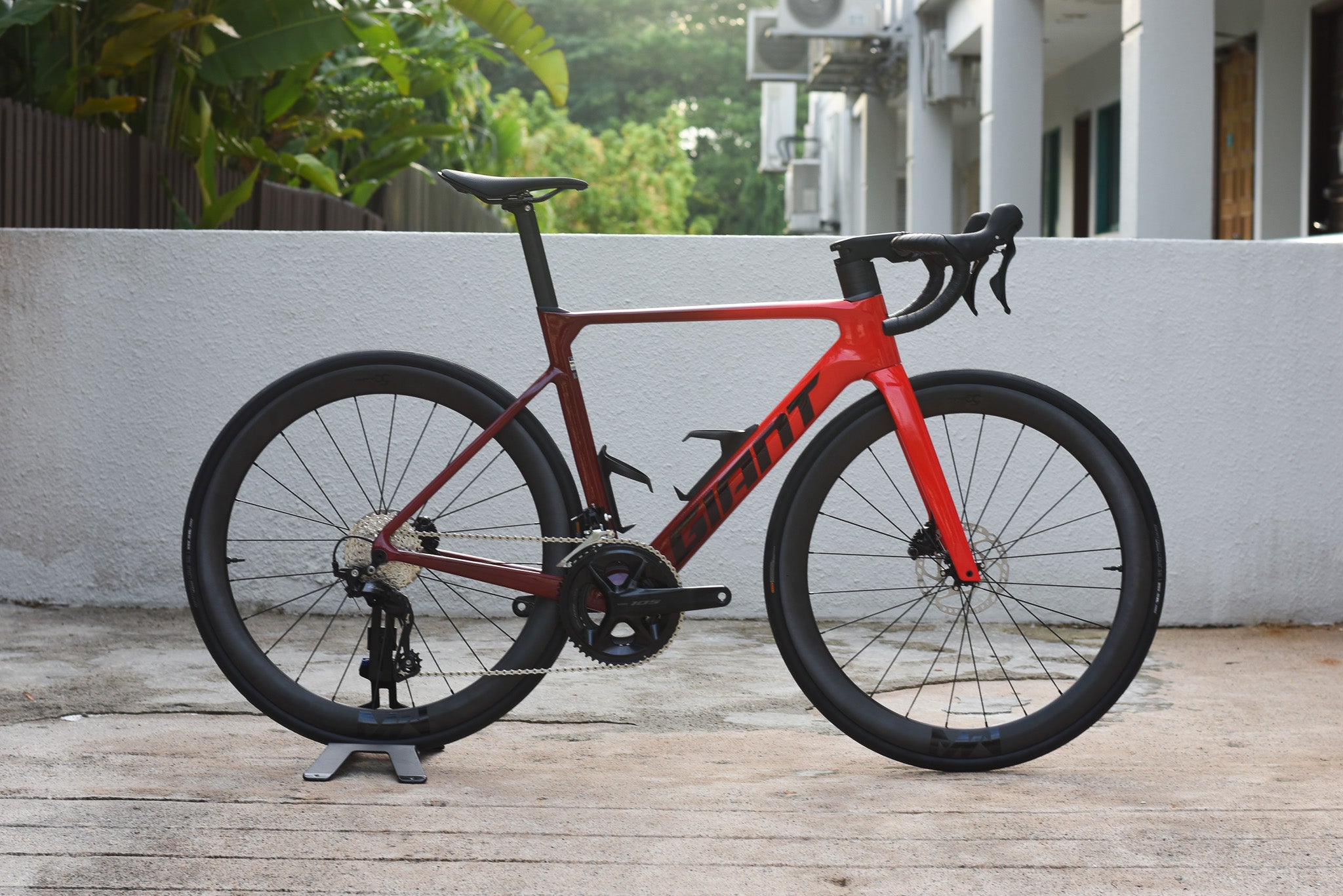

GIANT PROPEL ADVANCED (MW, 105 R7120)

$3,800.00 $3,299.00 Sale
3 payments of $1,099.66 with
Loading...
Color: Pure Red
Size: XS

Pickup available at Tay Junction @ Bukit Timah

Usually ready in 24 hours

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color
Size

Highlight

MAXIMIZE YOUR WATTS DURING SPRINTS, BREAKAWAYS AND SOLO ATTACKS. THIS AERO ROAD MACHINE IS REENGINEERED TO GIVE YOU A REAL ADVANTAGE AGAINST THE WIND. BECAUSE SMALL GAINS LEAD TO BIG WINS.

KEY PERFORMANCE FACTORS

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce outstanding overall aero performance.

Easier Adjustability

All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning Efficiency

Advanced-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

SPECIFICATIONS
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Pure Red
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive Aero steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL Aero
    XS-S: 40cm
    M-M/L: 42cm
    L-XL: 44cm
  • Grips
    Stratus Lite 2.0
  • Stem
    Giant Contact SL Aero, OverDrive Aero
    XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Saddle
    Giant Fleet SL
  • Pedals
    N/A
  • Shifters
    Shimano 105
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 hydraulic
  • Cassette
    Shimano 105, 12-speed, 11x30
  • Chain
    KMC X12
  • Crankset
    Shimano 105 R7100, 52/36T
    XS-S: 170mm
    M-M/L: 172.5mm
    L-XL: 175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    MountWu MT082 carbon wheelset
    Rim Height: 50mm
    Inner Rim Width: 21mm
    Outer Rim Width: 28mm (30mm at widest point)
  • Hubs
    [F] MountWu, stainless steel bearings, centerlock, 18 holes, 100x12mm thru-axle
    [R] MountWu 36T star ratchetdriver , stainless steel bearings, centerlock, 21 holes, 142x12mm thru-axle
  • Spokes
    Pillar stainless steel spokes, straight pull
  • Tyres
    Giant Gavia Course 1, tubeless,700x25c (28mm), folding
  • Extras
    computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
  • Weight
    ~8.38kg (Size S), wheelset weight 1.45kg with rim tape and valves

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Propel Advanced/Advanced Pro (3rd Gen)
XS S M ML L XL
A SEAT TUBE LENGTH (mm) 465 500 520 545 575 595
B SEAT TUBE ANGLE 74.5° 73.5° 73.0° 73.0° 73.0° 72.0°
C TOP TUBE LENGTH (mm) 520 535 550 565 580 600
D HEAD TUBE LENGTH (mm) 120 130 145 165 185 200
E HEAD TUBE ANGLE 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F FORK RAKE (mm) 45 45 45 45 45 45
G TRAIL (mm) 72.1 64 59.2 59.2 59.2 59.2
H WHEELBASE (mm) 976 977 980 991 1006 1020
I CHAIN STAY LENGTH (mm) 405 405 405 405 405 405
J BOTTOM BRACKET DROP (mm) 70 68 68 65 65 65
K STACK (mm) 517 528 545 562 581 596
L REACH (mm) 376 383 388 393 402 412
M STANDOVER HEIGHT 722 753 770 794 821 834
N HANDLEBAR WIDTH (mm) 400 400 420 420 440 440
O STEM LENGTH (mm) 80 90 100 110 110 120
P CRANK LENGTH (mm) 170 170 172.5 172.5 175 175
Q WHEEL SIZE 700C 700C 700C 700C 700C 700C
*All measurements shown are in millimetres unless otherwise stated.
