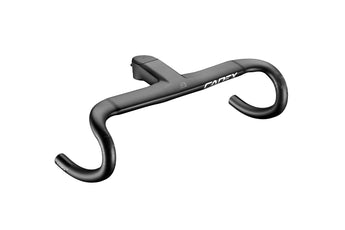

From scorching attacks to all-out sprints, this wind-slicing one-piece bar and stem is designed for competitive riders looking to break away from the pack. The flattened tops reduce frontal surface area for those moments when you’re tucked deep and charging hard. A shallow 125mm drop and long 80mm reach reinforce an aero position and make transitions with your hand positions smooth and easy.
FEATURES
- Integrated bar-and-stem construction and internal cable routing for improved
aerodynamic performance. - One-piece, no-bond manufacturing on the drops, hoods and tops utilizes high-
grade carbon fiber and CADEX precision layup technique to eliminate the added
weight and flex found in traditionally bonded bars. - Flattened tops improve aerodynamic efficiency.
- 80mm reach and narrow width at the hoods for natural aero positioning.
- T800 and T1100 carbon fiber keeps weight low without compromising strength or
stiffness. - Shallow drop makes transitions between hoods and drops fast and easy.
- 3-degree flare delivers enhanced control when descending, cornering and
sprinting. - 2-degree backsweep and gently curved ramps provide better grip and support
during long rides. - Shimano Di2 satellite shifter compatible.
- Out-front computer mount.
- Compatible with 1-1/4”, 1-1/8” and OverDrive Aero steerer tubes with included
carbon shims.
SPECIFICATIONS
- Material: Carbon
- Stem Angle: -10 degrees
- Stem Clamp: 1 1/4” / 1 1/8” / OverDrive Aero (with carbon shim)
- Stem Length: 80 / 90 / 100 / 110 / 120 / 130 / 140mm
- Width: (Drop to Drop) 360 / 380 / 400 / 420 / 440mm
- Width (Hood to Hood): 340 / 360 / 380 / 400 / 420mm
- Drop: 125mm
- Reach: 80mm (72mm for 360mm bar)
- Flare: 3 degrees
- Backsweep: 2 degrees
- Weight: 325g (420mm x 100mm bar)
- Included Accessories: 1 1/8” spacer, OverDrive Aero spacer, 2021-2023 TCR spacer, OverDrive Aero shim 1 1/4” to 1/8” shim, CADEX out-front computer mount
*Size (Width-drops / Width-hoods / Stem).
