Giant

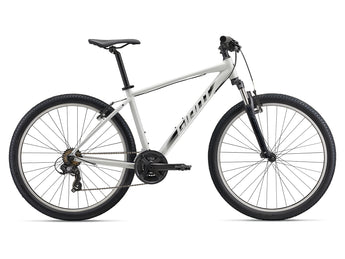

GIANT ATX

$560.00 $520.00 Sale
3 payments of $173.33 with
Loading...
Color: Snow Drift
Size: XXS

Pickup available at Tay Junction @ Bukit Timah

Usually ready in 24 hours

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color
Size

Highlight

FROM PARKWAYS TO PATHS, PAVED ROADS OR DIRT, THIS VERSATILE FLAT-BAR BIKE CAN HELP YOU REACH NEW FITNESS GOALS OR ADD SOME SPICE TO YOUR DAILY COMMUTE.



KEY PERFORMANCE FACTORS


All-terrain versatility


With a mountain bike style flat handlebar, suspension fork and v-brakes, you can ride road or dirt with confidence.




Lightweight and durable


Frameset constructed with high-quality ALUXX aluminum.




Comfort and stability


Frame geometry puts the rider in a position that balances efficiency with stability on rough roads, paths or trails.




SPECIFICATIONS





  • Sizes

    26: XXS,XS 27.5: S,M,L,XL



  • Colors

    Eclipse, Snow Drift



  • Frame

    ALUXX-Grade Aluminum



  • Fork

    SR Suntour XCE 28, coil, preload XXS: 80mm travel (26) XS: 80mm travel (26) S: 80mm travel (26) / 80mm travel (27.5) M: 80mm travel (27.5) L: 80mm travel (27.5) XL: 80mm travel (27.5) XXL: 80mm travel (27.5)



  • Shock

    N/A



  • Handlebar

    Giant Sport, alloy, 25.4mm XXS: 600mm (26) XS: 600mm (26) S: 640mm (26) / 640mm (27.5) M: 680mm (27.5) L: 680mm (27.5) XL: 680mm (27.5) XXL: 680mm (27.5)



  • Grips

    Giant Sole-O



  • Stem

    Giant Sport, alloy, 15-degree XXS: 60mm (26) XS: 60mm (26) S: 75mm (26) / 60mm (27.5) M: 60mm (27.5) L: 75mm (27.5) XL: 75mm (27.5) XXL: 75mm (27.5)



  • Seatpost

    Giant Sport, 30.9mm XXS: 300mm (26) XS: 300mm (26) S: 300mm (26) / 375mm (27.5) M: 375mm (27.5) L: 375mm (27.5) XL: 375mm (27.5) XXL: 375mm (27.5)



  • Saddle

    Giant custom



  • Pedals

    platform



  • Shifters

    Shimano EF41, 3x7



  • Front Derailleur

    Shimano Tourney



  • Rear Derailleur

    Shimano Tourney



  • Brakes

    MTB linear pull



  • Brake Levers

    Shimano EF41



  • Cassette

    Shimano MF-TZ500, 14x28



  • Chain

    KMC Z7



  • Crankset

    ProWheel forged, 24/34/42 XXS: 165mm (26) XS: 165mm (26) S: 170mm (26) / 170mm (27.5) M: 170mm (27.5) L: 175mm (27.5) XL: 175mm (27.5) XXL: 175mm (27.5)



  • Bottom Bracket

    cartridge



  • Rims

    Giant alloy



  • Hubs

    alloy, sealed bearing



  • Spokes

    stainless, 14g



  • Tires

    Giant Quickcross, 27.5x2.1" / 26x2.1"


  • Weight
    ~14.10kg (Size M)


*All specifications and prices listed are subject to change without notice.





Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

ATX
XXS (26") XS (26") S (26") S (27.5") M (27.5") L (27.5") XL (27.5")
A SEAT TUBE LENGTH (mm) 350 385 420 420 455 505 535
B SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 555 565 575 575 590 610 630
D HEAD TUBE LENGTH (mm) 95 105 120 95 110 145 170
E HEAD TUBE ANGLE 68.0° 68.0° 68.0° 68.0° 68.0° 68.0° 68.0°
F FORK RAKE (mm) 42 42 42 42 42 42 42
G TRAIL (mm) 92.5 92.5 92.5 92.5 92.5 92.5 92.5
H WHEELBASE (mm) 1065 1076 1087 1080 1091 1114 1136
I CHAIN STAY LENGTH (mm) 420 420 420 435 435 435 435
J BOTTOM BRACKET DROP (mm) 35 35 35 50 50 50 50
K STACK (mm) 556 565 579 581 595 628 651
L REACH (mm) 390 398 403 403 408 418 431
M STAND OVER HEIGHT (mm) 688 710 723 721 747 789 814
N HANDLEBAR WIDTH (mm) 620 660 660 660 660 700 700
O STEM LENGTH (mm) 50 50 70 70 70 90 90
P CRANK LENGTH (mm) 160 165 170 170 170 175 175
Q WHEEL SIZE 26" 26" 26" 27.5" 27.5" 27.5" 27.5"

*All measurements shown are in millimetres unless otherwise stated.
