HIGHLIGHTS
- Stylish, lightweight rear rack
- Dual-panel design with integrated 3-in-1 system
- Mounts to eyelets, seat stays, or thru-axles (strap mount & thru-axle sold separately)

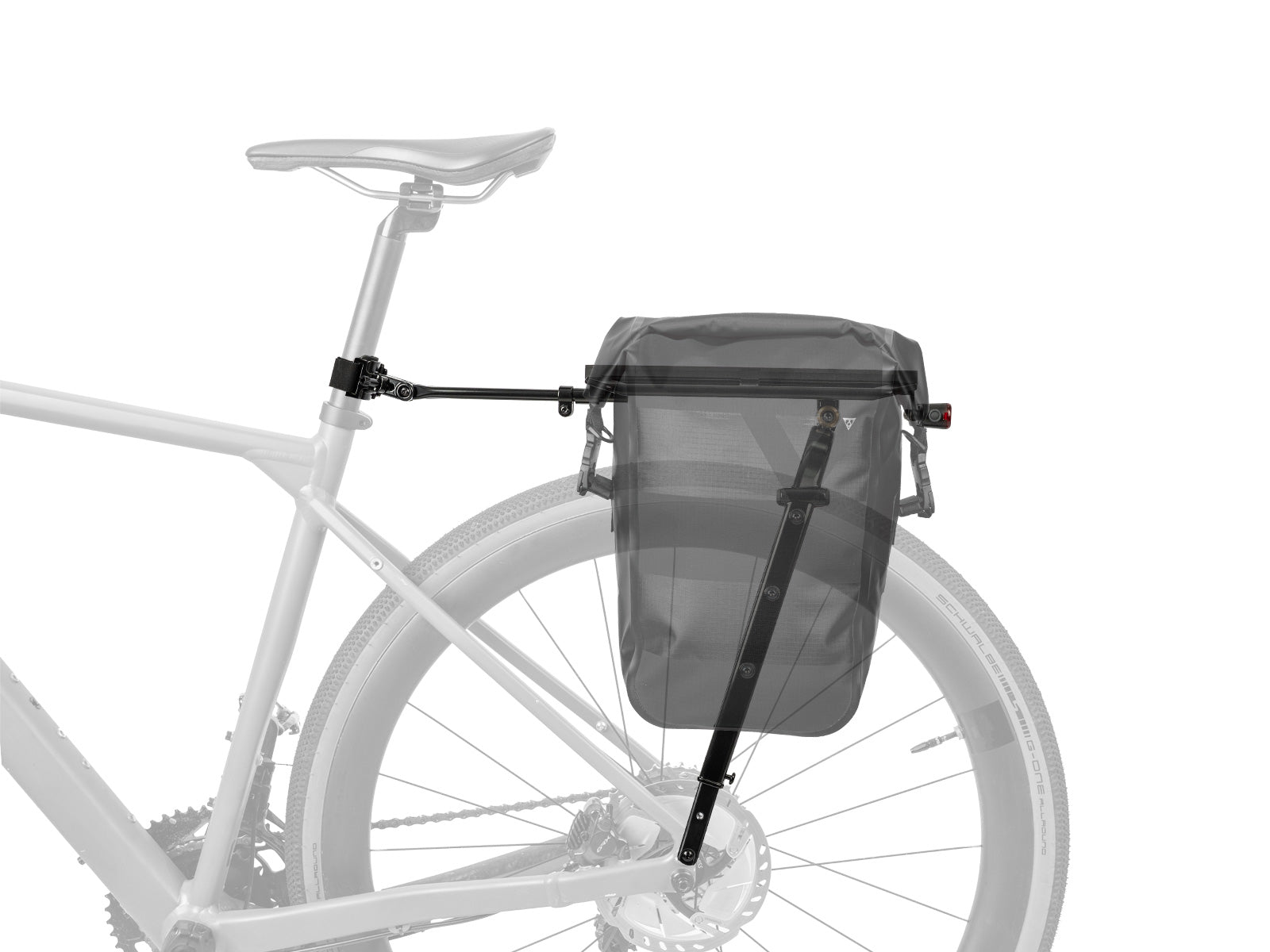

- Side frame supports pannier bags
MOUNTING OPTIONS
| EYELET MOUNT |
Designed for bicycles equipped with eyelet mounting points. This method provides a secure and integrated attachment point directly to the frame. |
|
[OPTIONAL] STRAP MOUNT |
Tool-free installation, allowing it to be securely fastened directly onto the seatstays. (Not recommended for carbon fiber bicycle frames) |
|
[OPTIONAL] THRU-AXLE MOUNT |
An optional accessory for select bikes, this method involves replacing the existing thru-axle with a specially designed version. This achieves a cleaner, more minimalist look by integrating the component directly with the axle. |
| INCLUDES TWO TYPES OF MOUNTING BRACKET ARMS |  |
[OPTIONAL] RACK REDLITE 60
SPECIFICATIONS
| Compatibility | • Fits Road & Gravel bikes up to 700x55C (not compatible with full suspension bikes) • Works with Topeak MTX QuickTrack 2.0, MIK®, and Racktime® SNAPIT 2.0 systems • Topeak Pannier Drybag |
| Attachment | Eyelet Mount |
| Max load | 22 kg ( 12 kg top / 5 kg each side ) |
| Material | Aluminum / Engineering grade polymer / Nylon straps |
| Size | 49.5 x 42 x 18.5 cm |
| Weight | 885 g |
| WEIGHT | 1.25 kg / 2.75 lb |
| ADDED FEATURE | Clamp for rear reflector, Tail light mount, Dropout eyelet mount |
