Giant

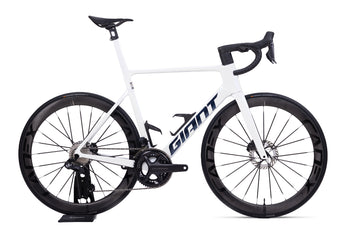

GIANT PROPEL ADVANCED SL 1 (CADEX EDITION)
Pickup currently unavailable at Tay Junction @ Bukit Timah
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Propel Adv SL (3rd Gen)
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Propel Advanced SL (3rd Gen)
| XS | S | M | ML | L | XL | ||
| A | Seattube length | 680 | 710 | 740 | 770 | 790 | 820 |
| B | Seattube angle (degrees) | 74.50 | 73.50 | 73.00 | 73.00 | 73.00 | 72.00 |
| C | Toptube length | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Headtube length | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Headtube angle (degrees) | 71.00 | 72.3 | 73.00 | 73.00 | 73.00 | 73.00 |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom bracket drop | 70 | 68 | 68 | 65 | 65 | 65 |
| K | Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Standover height | 744 | 769 | 787 | 807 | 829 | 843 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 | 440 |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
Highlight
UNLEASH YOUR SPRINT WITH 200 METRES TO GO. CLOSE A GAP, CHASE BACK, LAUNCH A SOLO ATTACK. THIS PRO-LEVEL ROAD MACHINE IS MADE FOR THE MOMENTS THAT COUNT. MORE AERO, MORE ADJUSTABLE, MORE WAYS TO WIN.
KEY PERFORMANCE FACTORS
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.
Easier Adjustability
Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
SPECIFICATIONS
Sizes
XS, S, M, M/L, L, XL
Colors
Unicorn White, Metallic Navy/White, Metallic Navy/Gold
Frame
Advanced SL-Grade Composite, integrated seatpost, disc
Fork
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc
Shock
N/A
Handlebar
Giant Contact SLR Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 2.0
Stem
Giant Contact SLR Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost
Advanced SL-Grade composite, integrated design, -5/+15mm offset
Saddle
Giant Fleet SLR
Pedals
N/A
Shifters
Shimano Ultegra Di2 ST-R8170
Front Derailleur
Shimano Ultegra Di2 FD-R8150
Rear Derailleur
Shimano Ultegra Di2 RD-R8150
Brakes
Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers
Shimano Ultegra Di2 hydraulic
Cassette
Shimano Ultegra, 12-speed, 11x30
Chain
Shimano Ultegra, CN-M8100
Crankset
Shimano Ultegra with Giant Power Pro 3, 36/52, XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
Shimano, press fit
Rims
Cadex 50 Ultra Disc WheelSystem, [F]50mm, [R]50mm
Hubs
[F] CADEX R3-C40 Aero Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C40 Aero Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
Spokes
Cadex Super Aero carbon spokes
Tyres
CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras
computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
- Weight
~7.22kg (Size ML)
*All specifications and prices listed are subject to change without notice.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Propel Advanced SL (3rd Gen)
| XS | S | M | ML | L | XL | ||
| A | Seattube length | 680 | 710 | 740 | 770 | 790 | 820 |
| B | Seattube angle (degrees) | 74.50 | 73.50 | 73.00 | 73.00 | 73.00 | 72.00 |
| C | Toptube length | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Headtube length | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Headtube angle (degrees) | 71.00 | 72.3 | 73.00 | 73.00 | 73.00 | 73.00 |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chainstay length | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom bracket drop | 70 | 68 | 68 | 65 | 65 | 65 |
| K | Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Standover height | 744 | 769 | 787 | 807 | 829 | 843 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 | 440 |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
