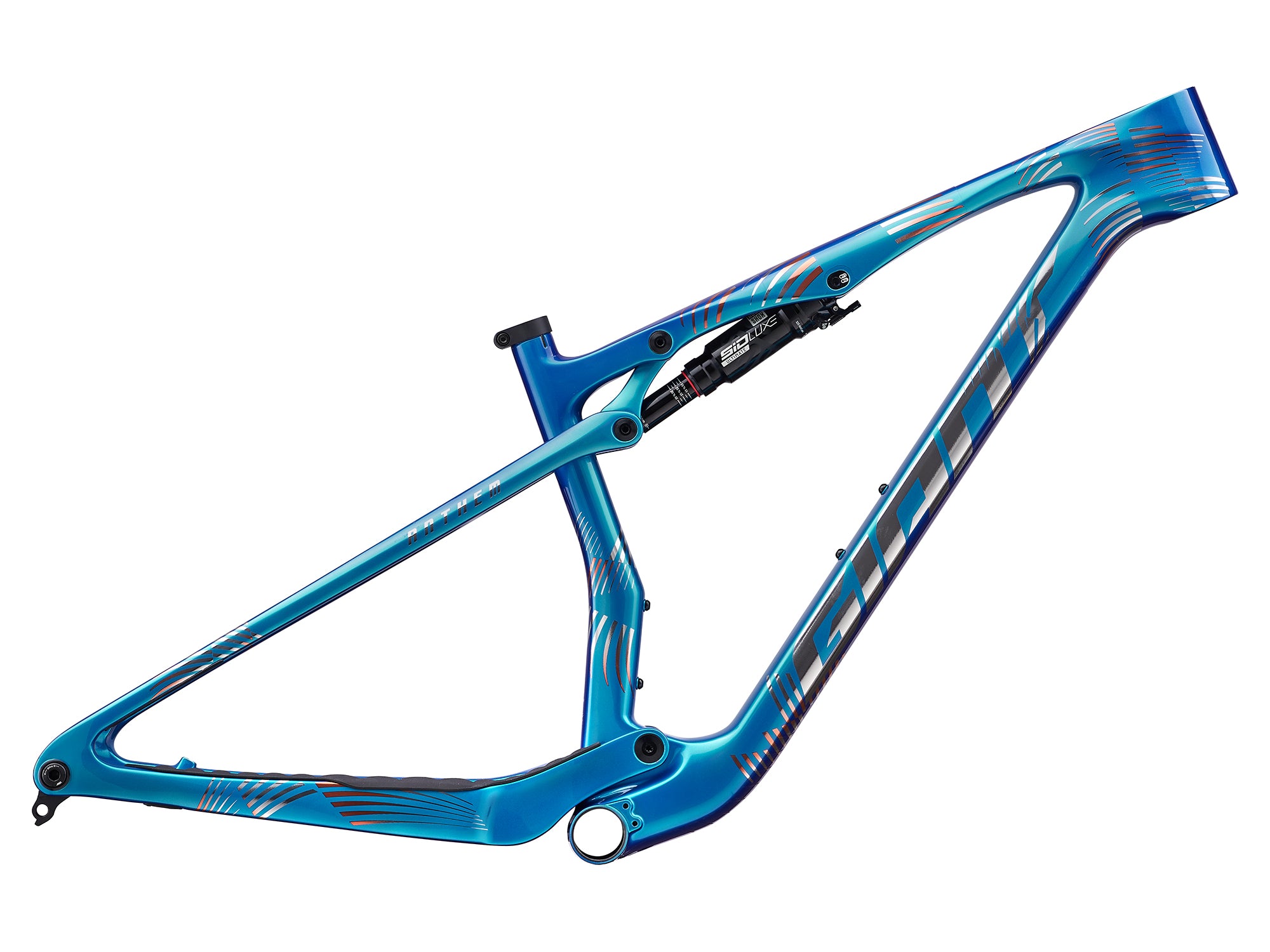

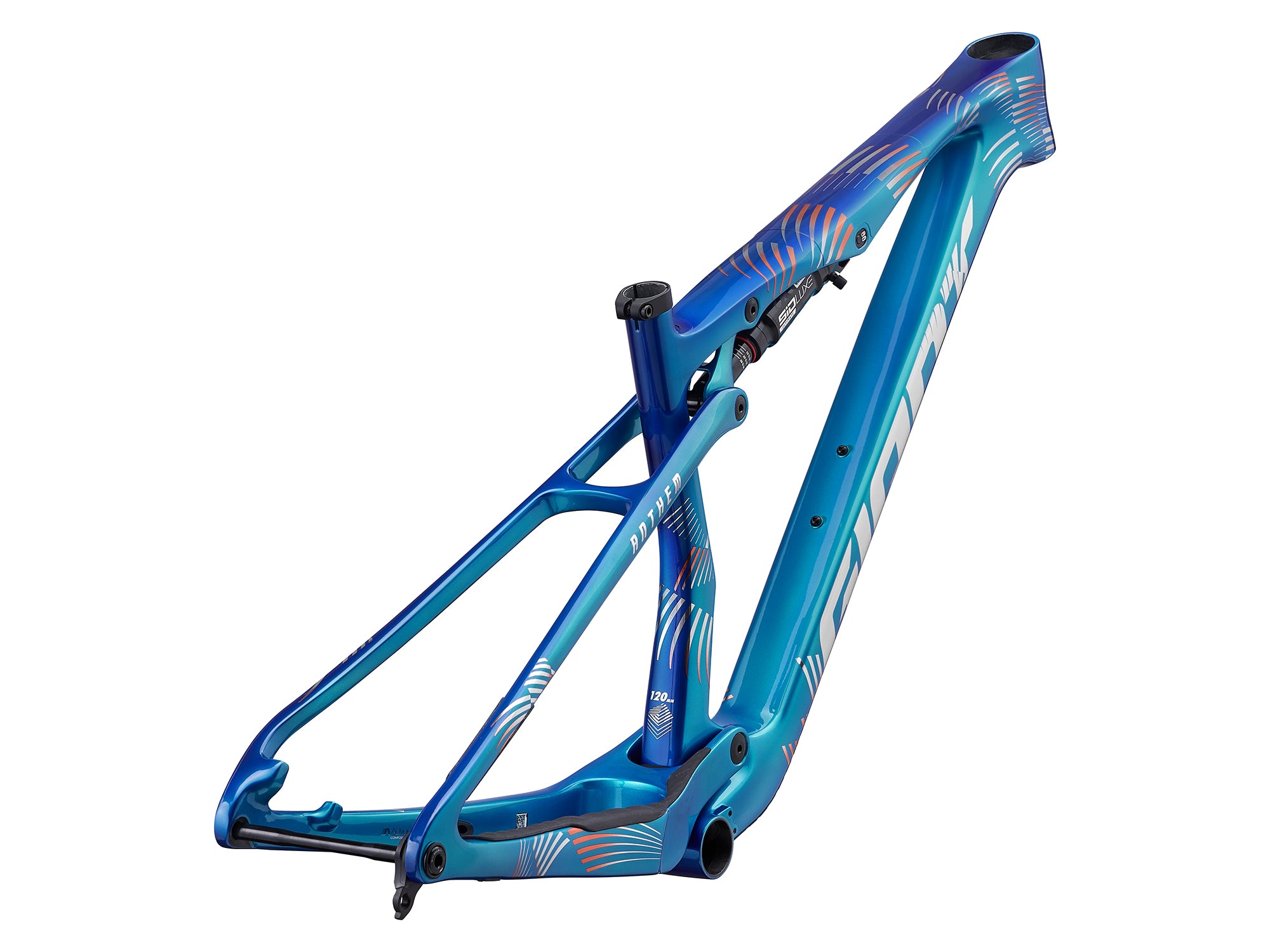

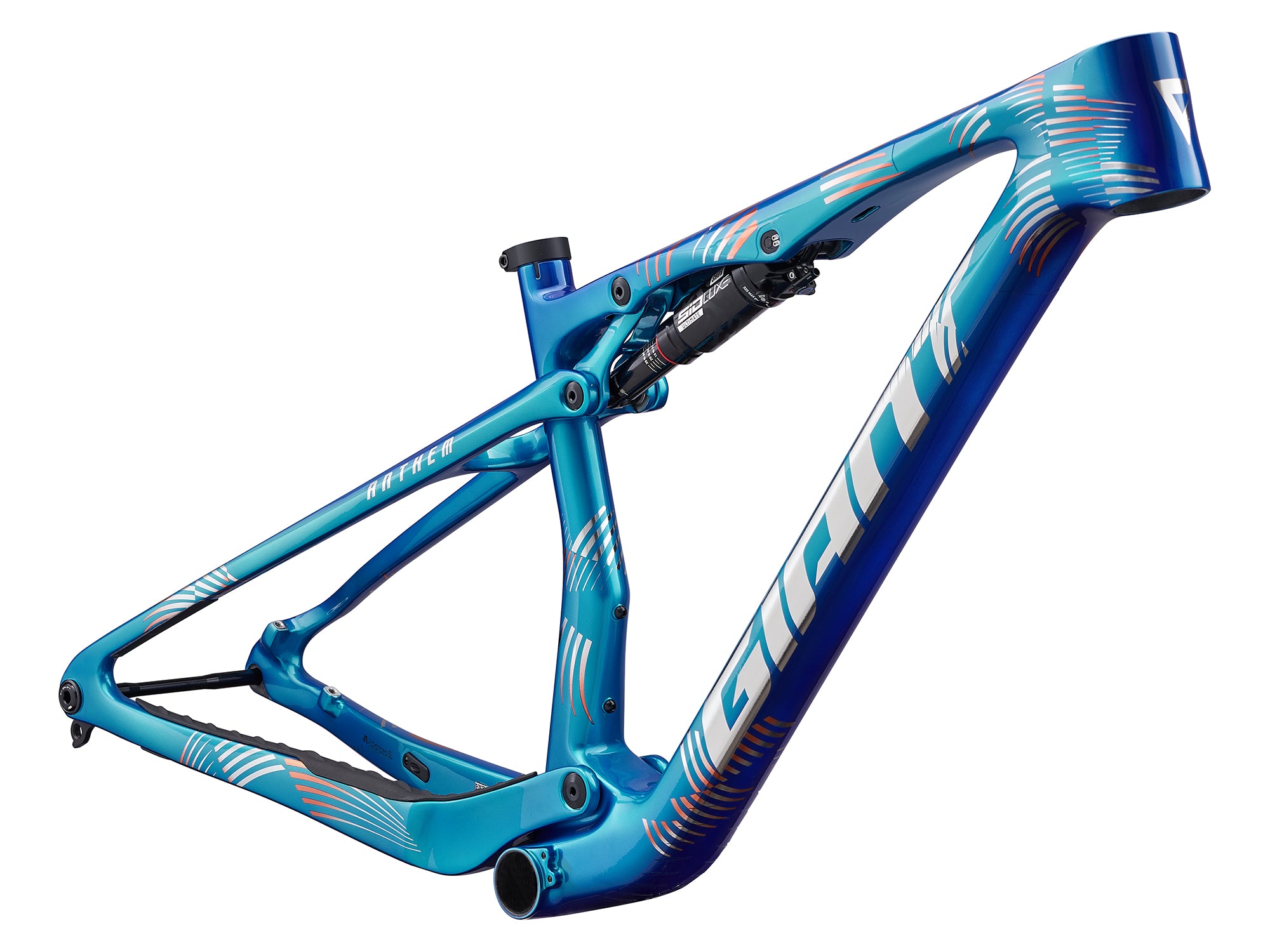

GIANT ANTHEM ADVANCED SL FRAMESET (7TH GEN)

$5,500.00
Loading...
Color: Electrical Storm
Size: M

Pickup currently unavailable at Tay Junction @ Bukit Timah

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color
Size

Highlight

THIS PRO-LEVEL XC FLYER PAIRS NEW FLEXPOINT PRO REAR SUSPENSION WITH A SUPERLIGHT FULL COMPOSITE FRAME AND RACE-READY GEOMETRY. IT’S THE ULTIMATE WEAPON FOR TECHNICAL CROSS-COUNTRY TERRAIN.

KEY PERFORMANCE FACTORS

Ultra-efficient

Next-generation Advanced composite mainframe and rear swingarm is 250g lighter than previous version. The bottom bracket area is stiffer for faster acceleration, and a steeper seattube puts the rider in an efficient, front-forward climbing position.

Superior control

All-new FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The reengineered frameset features modern XC geometry including a slacker 67.5-degree headtube and 110mm suspension fork for technical descents.

29er stability and speed

Frame geometry and suspension are optimized for larger-diameter 29-inch wheels. A longer reach and updated cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.

SPECIFICATIONS
  • Sizes
    S, M, L, XL
  • Colors
    Electrical Storm
  • Frame
    Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle
  • Fork
    Fox 34 Float SC Performance Elite Live Valve, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
  • Shock
    Fox Performance Elite Live Valve, 165/45, custom tuned for Giant
  • Handlebar
    Giant Contact SLR XC Flat, composite, 760x35mm
  • Grips
    Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm
  • Stem
    Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm
  • Seatpost
    Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 150mm travel / 30.9 x 445mm
  • Saddle
    Fi'zi:k Antares R5 with K:ium rails
  • Pedals
    N/A
  • Shifters
    Shimano Deore XT SL-M8100, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore XT RD-M8100
  • Brakes
    Shimano Deore XT BR-M8100, hydraulic, Shimano RT-64 rotors [F]180mm, [R]160mm
  • Brake Levers
    Shimano Deore XT BL-M8100
  • Cassette
    Shimano Deore XT M8100, 10x51
  • Chain
    KMC X-12
  • Crankset
    Shimano Deore XT, 32t S:170mm, M:175mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant XCR 1 29 Carbon WheelSystem
  • Hubs
    Giant XCR 1 29 Carbon WheelSystem
  • Spokes
    Giant XCR 1 29 Carbon WheelSystem
  • Tires
    Maxxis Recon Race 29x2.4, foldable, TLR, EXO, tubeless
  • Extras
    tubeless prepared, 2.4" max tire size, 34t max chainring size, Giant/MRP CS chain guide
  • Weight
    ~11.18kg (Size M)

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Anthem Advanced SL (7th Gen)
S (LOW/HIGH) M (LOW/HIGH) L (LOW/HIGH) XL (LOW/HIGH)
A Seattube length 400 420 465 495
B Seattube angle (degrees) 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0°
C Toptube length 576 | 574 602 | 600 624 | 623 651 | 650
D Headtube length 90 95 105 115
E Headtube angle (degrees) 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0°
F Fork rake 44 44 44 44
G Trail 116 | 112.2 115.9 | 112.2 115.9 | 112.2 115.9 | 112.2
H Wheelbase 1141 | 1140 1168 | 1167 1192 | 1191 1221 | 1220
I Chainstay length 437 | 435 437 | 435 437 | 435 437 | 435
J Bottom bracket drop 51 | 45 51 | 45 52 | 45 52 | 45
K Stack 602 | 599 607 | 603 616 | 612 626 | 622
L Reach 420 | 425 445 | 450 465 | 470 490 | 495
M Standover height 420 | 425 445 | 450 465 | 470 490 | 495
N Handlebar width 769 | 775 764 | 771 758 | 763 751 | 758
O Stem length 60 70 70 80
P Crank length 170.0 175.0 175.0 175.0
*All measurements shown are in millimetres unless otherwise stated.
