With an all-new ALUXX aluminum frame featuring updated tubing shapes and lighter overall weight, this hardtail delivers smooth, confident handling on off-road terrain. Optimized for either 29-inch or 27.5-inch wheels depending on the frame size, and a smooth-operating front suspension fork with either 100mm or 80mm of travel, it’s a great choice for aspiring mountain bikers. A host of modern MTB features including wide tire clearance (up to 2.4-inch), thru-axle hubs, internal cable routing, and a clutch-type 1x drivetrain, elevate the trail riding experience.

KEY PERFORMANCE FACTORS

Modern mountain bike design

Tapered fork steerer tubes, quality components including a 1x drivetrain with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow.

Improved off-road control

Lower standover height, increased reach allows for more room to work the bike. Paired with the compatibility with high-volume tires (up to 2.4-inch), riders can drive the bike better into the ground for better traction.

Light and durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

SPECIFICATIONS

Sizes

29: S,M,L,XL
Colors

Black, Radiant Orange
Frame

ALUXX-Grade Aluminum, disc, UDH rear derailleur hanger
Fork

SR Suntour XCE 29" or 27.5", Coil with Preload Adjuster, QR 100mm, straight 1-1/8" steel steerer, 42mm (27.5") or 46mm (29") offset
XS-S (27.5"): 80mm travel
S-XXL (29"): 100mm travel
Shock

N/A
Handlebar

Giant Connect Trail, 31.8mm
S (29"): 750mm, M-XL (29"): 780mm
Grips

Giant Sole-O
Stem

Giant Sport, 7-degree
S (29"): 50mm, M (29"): 60mm, L (29"): 70mm, XL (29"): 80mm
Seatpost

Giant Sport, 30.9mm
S-L (29"): 375mm
XL-XXL (29"): 420mm
Saddle

Giant ErgoContact Trail
Pedals

nylon body
Shifters

Microshift Acolyte, 1x8, SL-M6180-R
Front Derailleur

N/A
Rear Derailleur

Microshift, Acolyte, 1x8, RD-M5185M with clutch
Brakes

Tektro TKB-172 mechanical, 6-bolt rotors [F]160mm, [R]160mm
Brake Levers

Tektro TKB-172
Cassette

Microshift Acolyte, CS-H083, 12-46T
Chain

KMC 8.3
Crankset

ProWheel 30T
S-L (29"): 170mm, XL (29"): 175mm
Bottom Bracket

cartridge
Rims

Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs

28H, 6-bolt rotor locking system
Front: 100x9mm, Rear: 142x12mm
Spokes

stainless, 14g
Tires

Maxxis Ikon 29x2.20", wire bead
Extras

2.4" max tire size, 32T max chainring size

*All specifications and prices listed are subject to change without notice.

Buy GIANT TALON 4 (5TH GEN) from Tay Junction online bike store. We offer a wide range of bicycles accessories, components and apparel in Singapore.

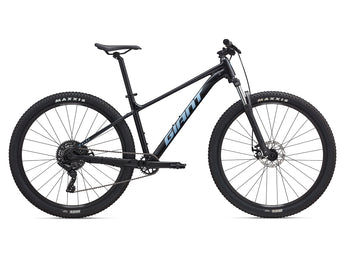

GIANT TALON 4 (5TH GEN)
