OVERVIEW

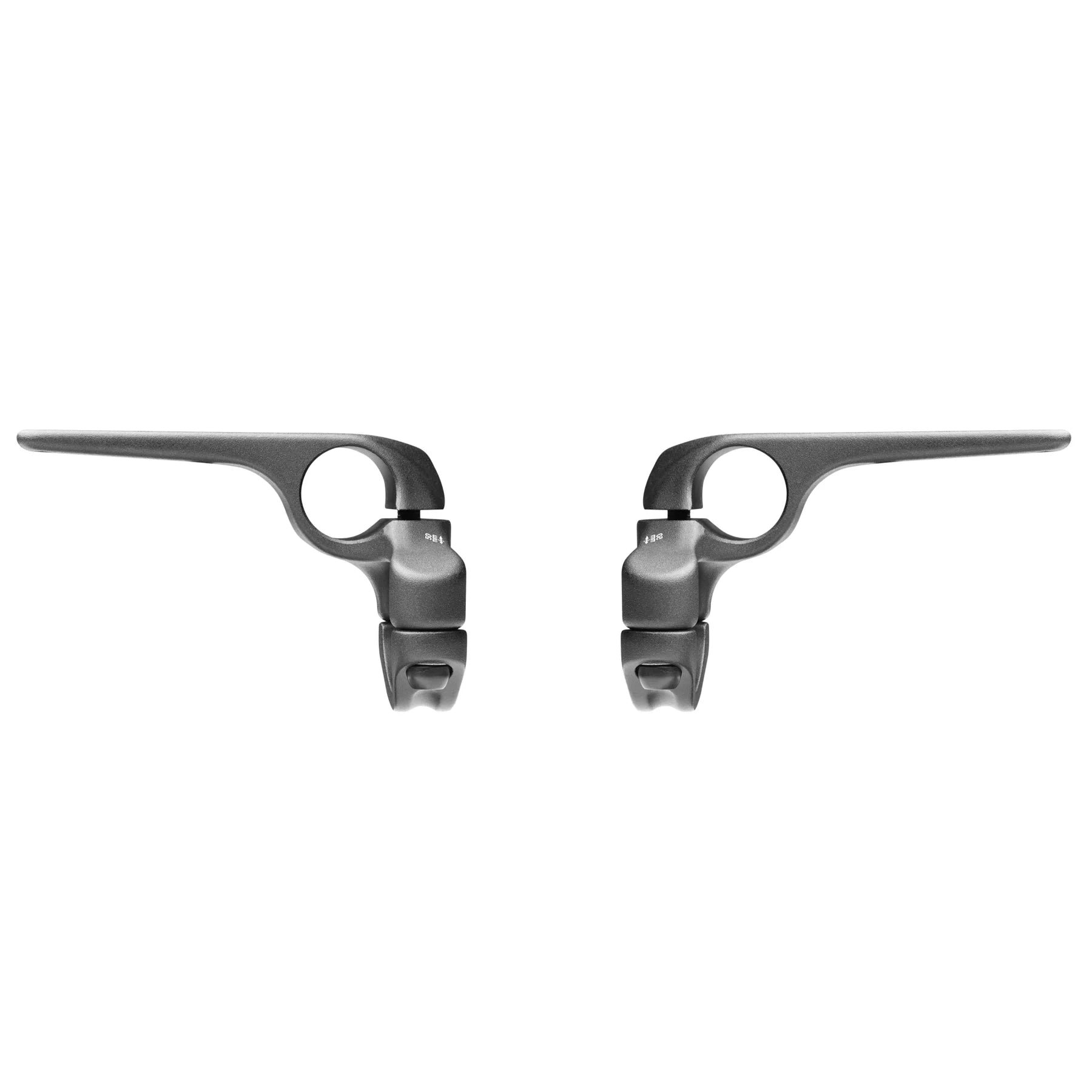

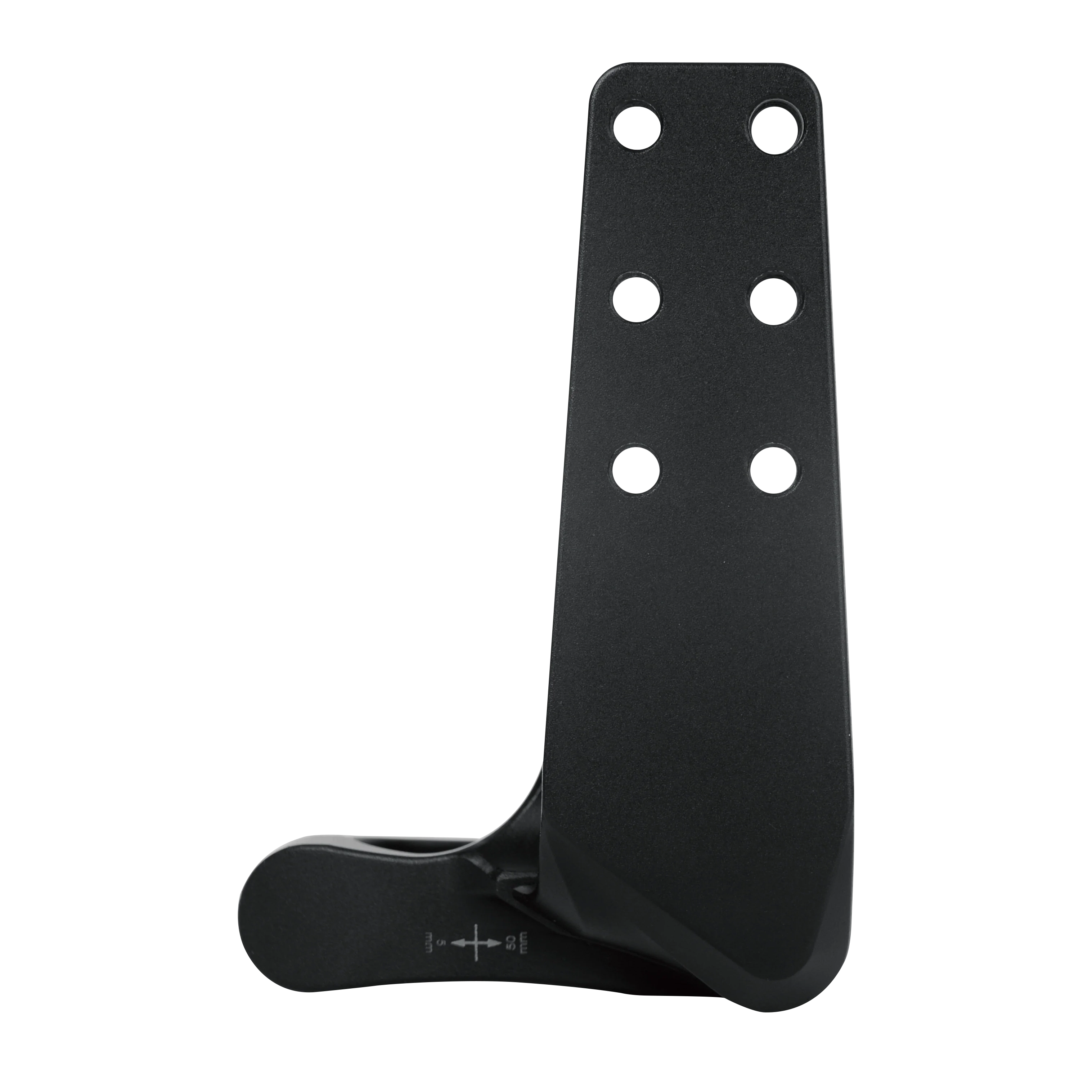

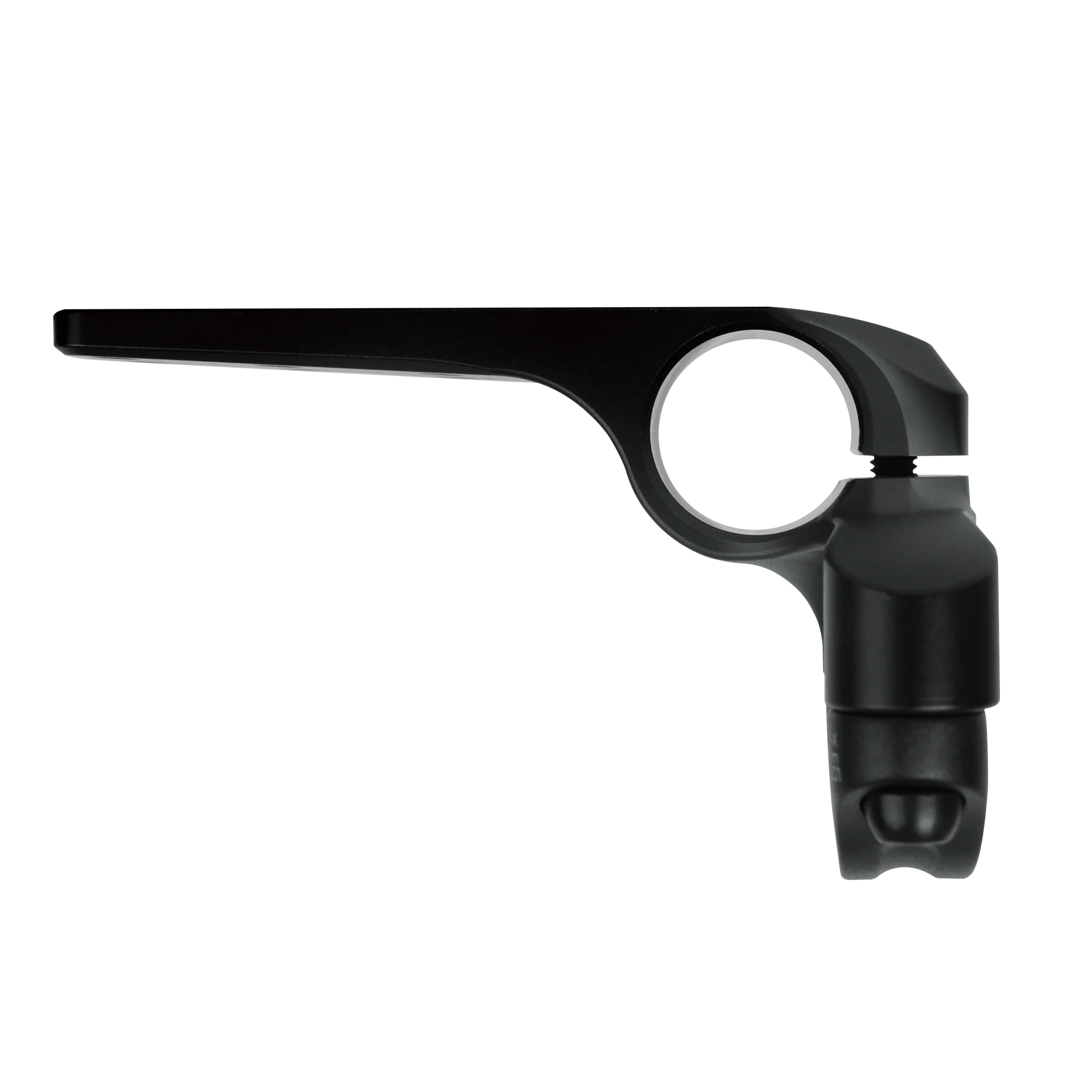

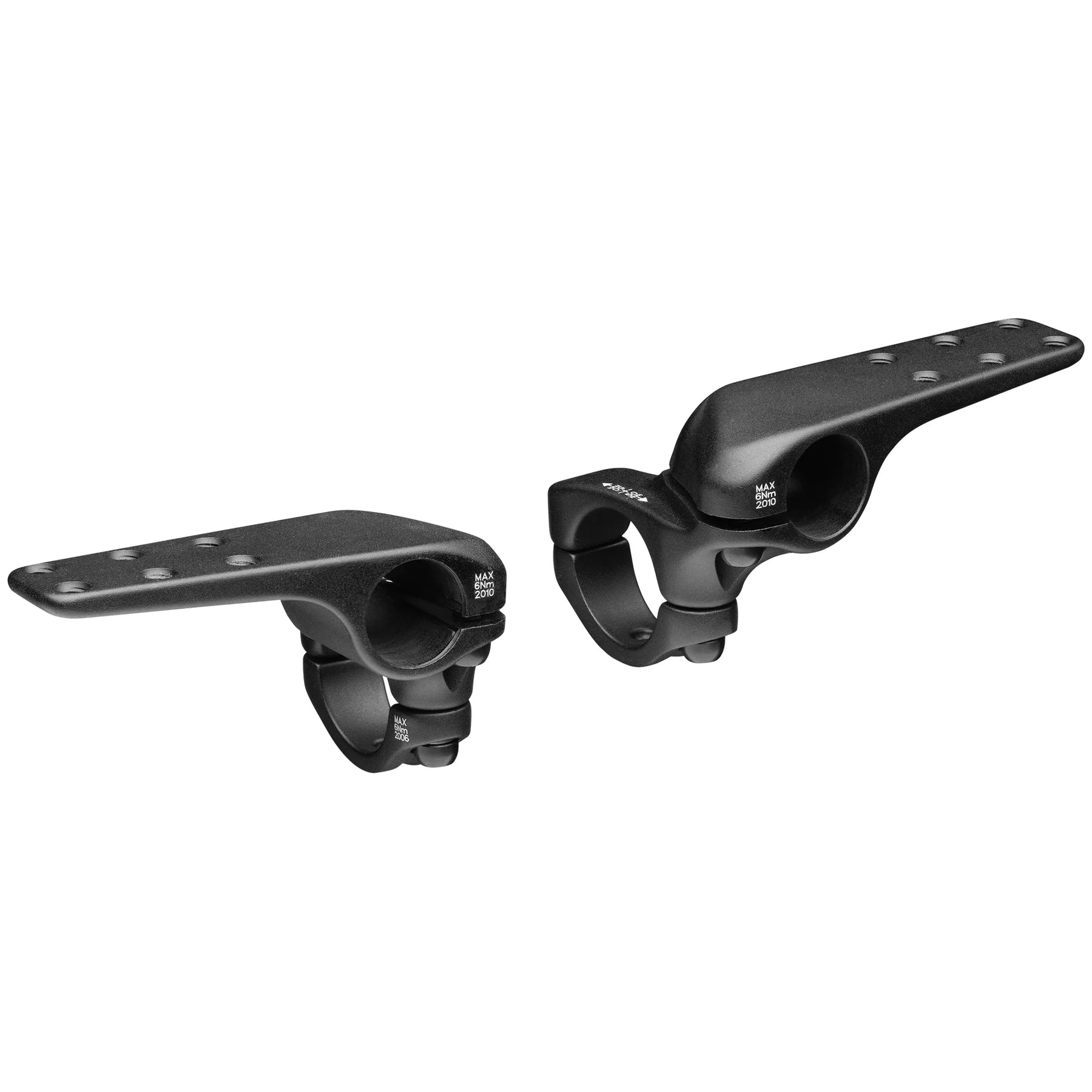

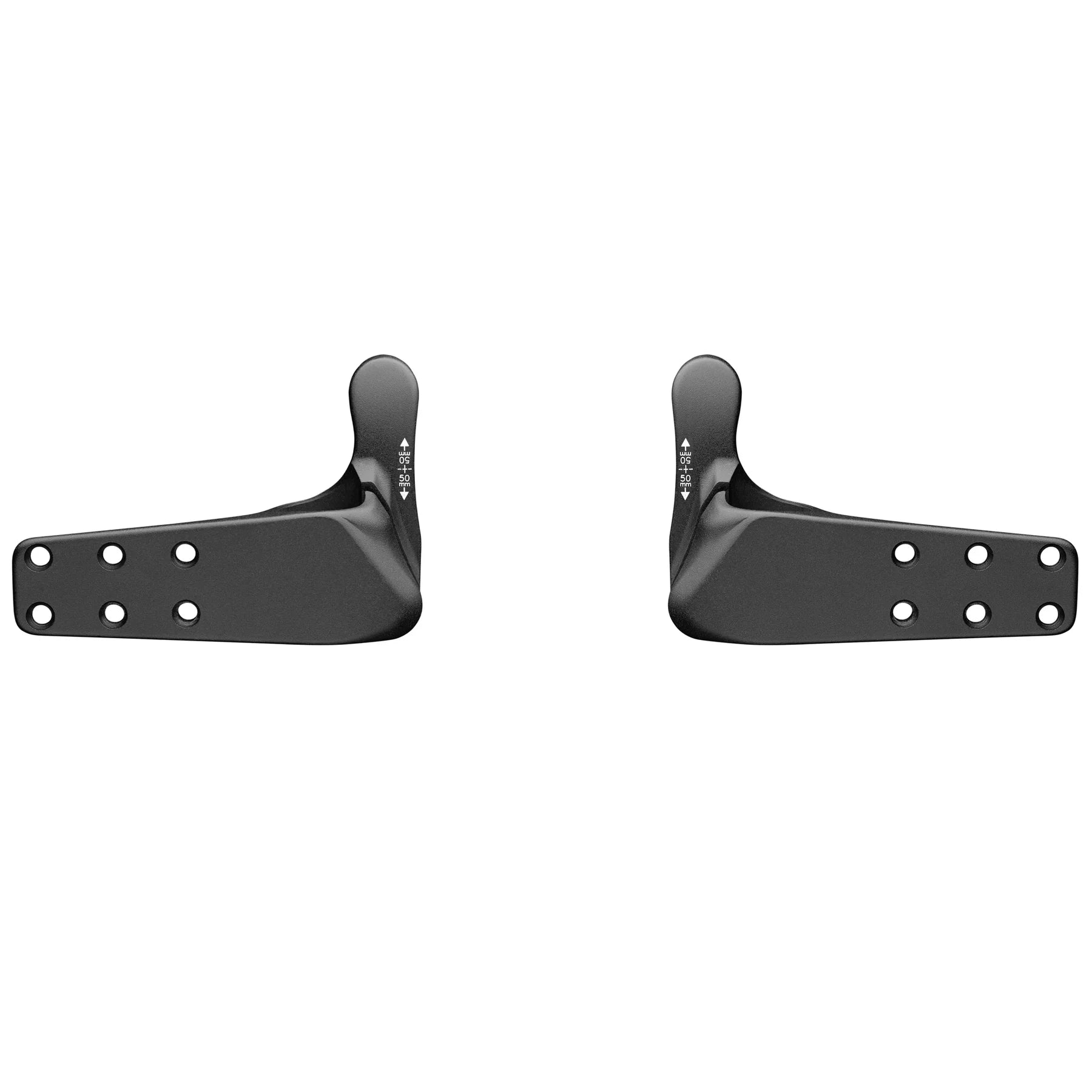

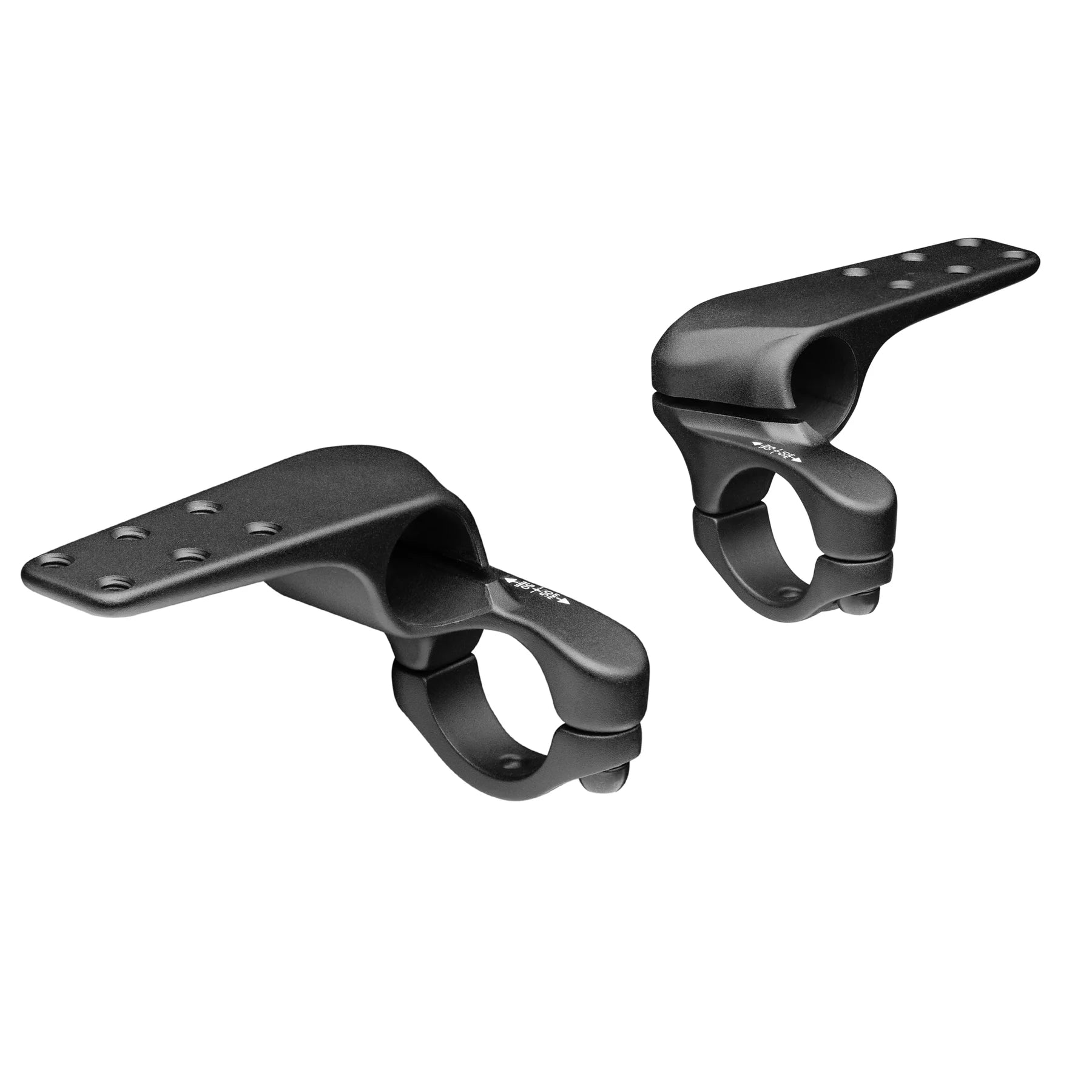

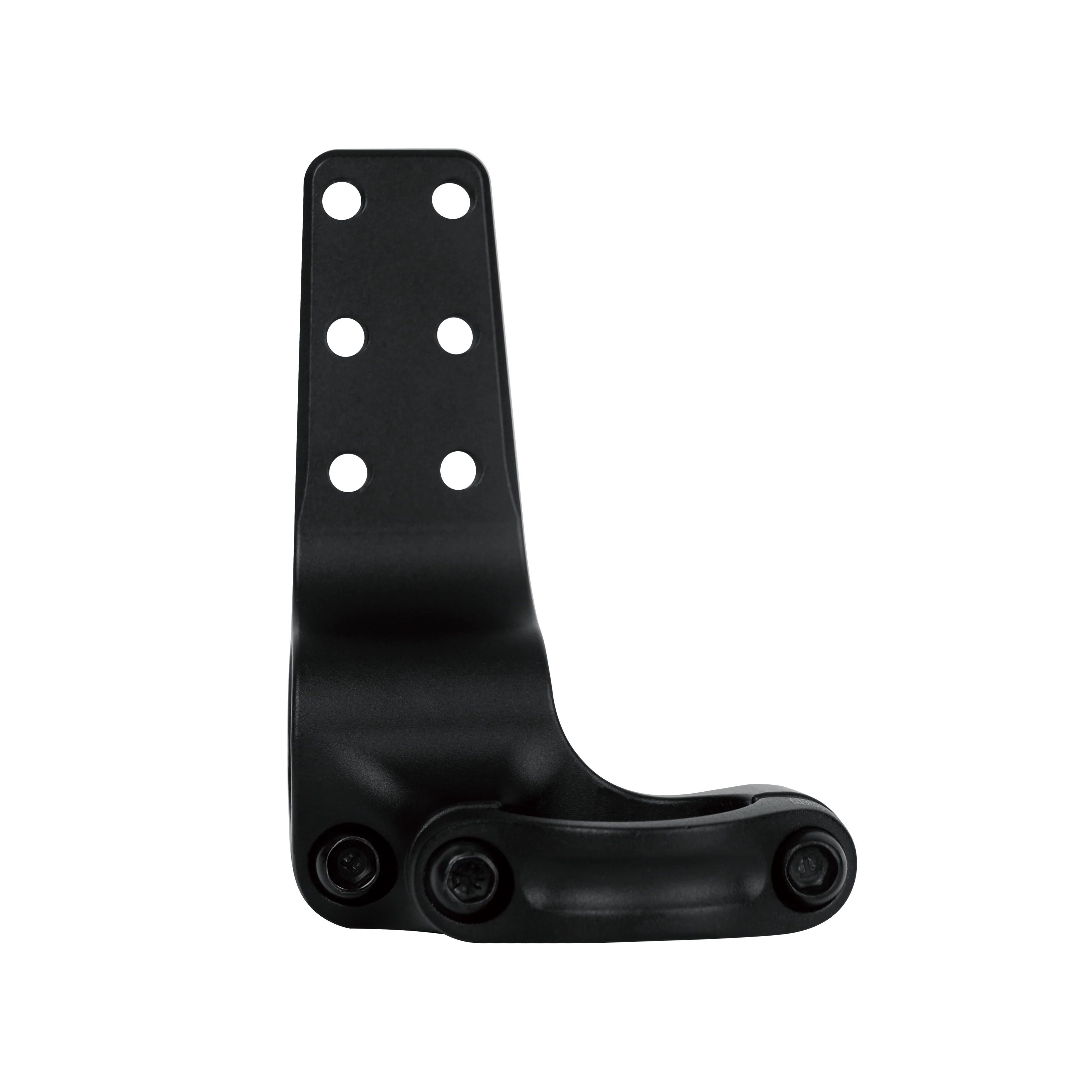

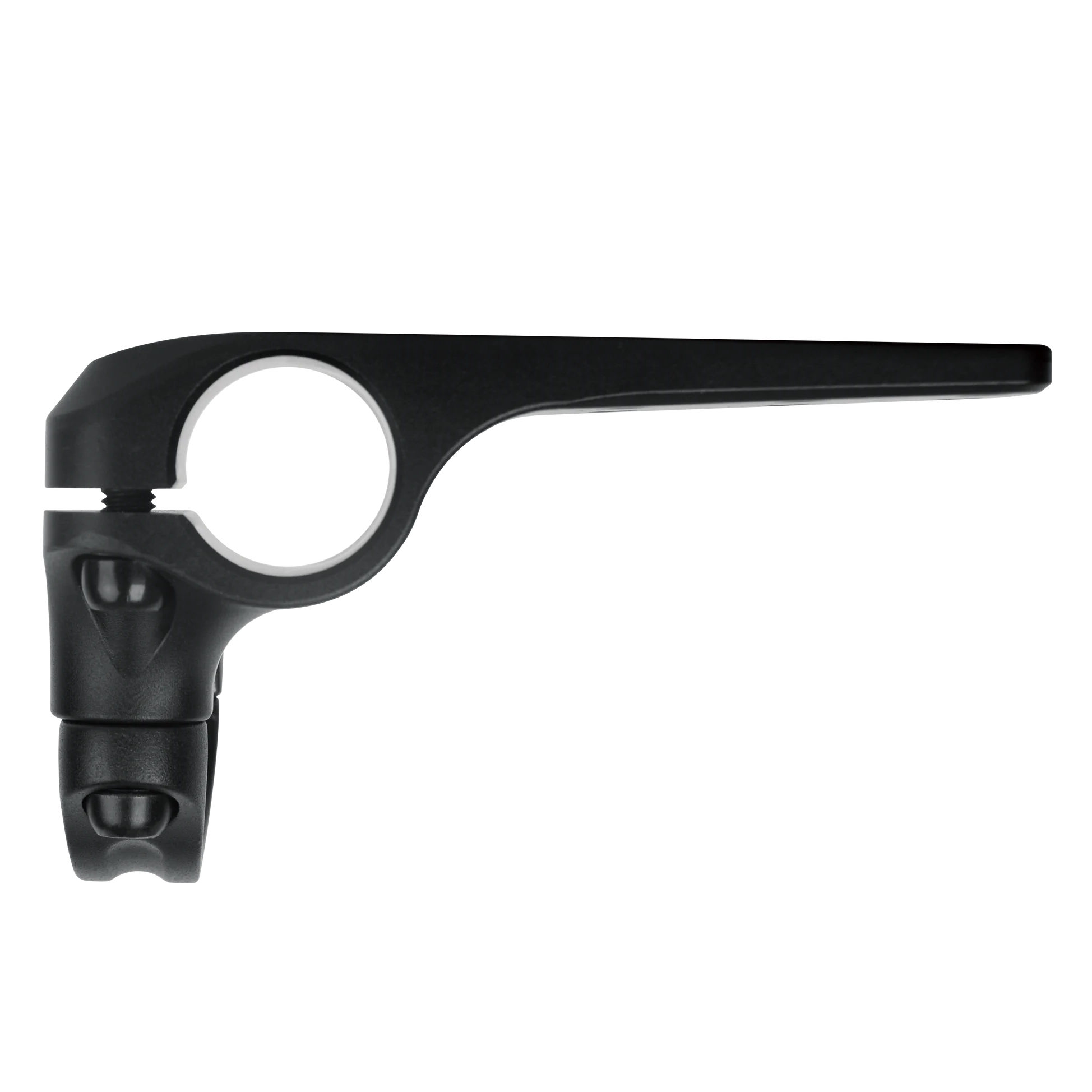

The Neosonic bracket offers our new generation fit range with a large offset to suit a range of applications.
This bracket is designed to give riders the option to move the armrests well behind the basebar in order to adopt a compact position.
- Well suited to use with road and gravel bikes to allow a comfortable aero position without moving the saddle.
FIT OPTIONS:
- Bracket: Neosonic (6061-T6 aluminum)
- Armrest Stack: 42.5mm
- Armrest Offset: 25mm
- Armrest Width Adjustment: 37mm
- Handlebar Clamp Diameter: 31.8mm
- Extension Clamp Diameter: 22.2mm
- Color: Black
- Weight: 256g
TECH SPECS
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 6Nm
- Armrest Bolts: 4.7Nm
