Giant

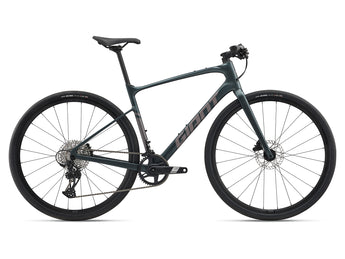

GIANT FASTROAD AR ADVANCED 1
Pickup currently unavailable at Tay Junction @ Bukit Timah
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Fastroad AR
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Fastroad AR
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | HEAD TUBE LENGTH (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | HEAD TUBE ANGLE | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 74 | 74 | 70 | 70 | 67 | 67 |
| H | WHEELBASE (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | CHAIN STAY LENGTH (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | STACK (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | REACH (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | STAND OVER HEIGHT (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| N | HANDLEBAR WIDTH (mm) | 640 | 640 | 680 | 680 | 680 | 680 |
| O | STEM LENGTH (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | CRANK LENGTH (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
Highlight
IMAGINE A QUICK AND AGILE ROAD BIKE BUT WITH GREATER VERSATILITY. WITH FLAT HANDLEBAR POSITIONING, SMOOTH COMPLIANCE AND WIDE TUBELESS TYRES, FASTROAD AR FREES YOU UP TO RIDE PAVED ROADS, BUMPY BIKE PATHS AND EVERYTHING IN BETWEEN.
KEY PERFORMANCE FACTORS
Lightweight efficiency
High-quality ALUXX aluminum frame and composite fork deliver efficient pedaling power for a smooth, fast ride on variable roads and paths.
Smooth, stable ride quality
Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.
All-road capabilities
With clearance for high-volume tubeless tires (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.
SPECIFICATIONS
Sizes
XS, S, M, M/L, L, XL
Colors
Asphalt Green
Frame
Advanced-Grade Composite, flat mount disc, 12x142mm thru-axle
Fork
Advanced-Grade Composite, Full Carbon, OverDrive Steerer, 12x100mm thru-axle, flat mount disc
Shock
N/A
Handlebar
Giant Sport, 0mm rise, 9-degree back sweep, clamp diameter 31.8mm (XS: 640mm, S:640mm, M: 680mm, M/L: 680mm, L: 680mm, XL: 680mm)
Grips
Giant ErgoContact
Stem
Giant Contact, 8-degree (XS: 70mm, S: 80mm, M: 90mm, M/L: 100mm, L: 100mm, XL: 110mm)
Seatpost
Giant D-Fuse composite, 350mm
Saddle
Giant ErgoContact
Pedals
platform pedal
Shifters
SRAM NX Eagle Shifter, 1x12-speed
Front Derailleur
N/A
Rear Derailleur
SRAM Apex 12 Speed
Brakes
Shimano BR-U300, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Shimano BL-MT201
Cassette
SRAM XPLR 11-44T, PG-1231
Chain
SRAM Apex D1, 12-speed, CN-APX-D1
Crankset
SRAM Apex 1 Wide, 42T (XS: 170mm, S: 170mm, M: 170mm, M/L: 172.5mm, L: 172.5mm, XL: 172.5mm)
Bottom Bracket
SRAM Dub press-fit
Rims
Giant P-X2 Disc 700C Wheelset, 25mm inner rim width
Hubs
Giant alloy, 12mm thru-axle
Spokes
Sapim
Tyres
Maxxis Re-Fuse 60TPI, wirebead, tubeless, 700x40c
Extras
tubeless prepared, 42mm max tyre size, double chain ring 50/34T, single chain ring 42T
- Weight
~ 8.60kg (Size ML)
*All specifications and prices listed are subject to change without notice.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Fastroad AR
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | HEAD TUBE LENGTH (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | HEAD TUBE ANGLE | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 74 | 74 | 70 | 70 | 67 | 67 |
| H | WHEELBASE (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | CHAIN STAY LENGTH (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | STACK (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | REACH (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | STAND OVER HEIGHT (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| N | HANDLEBAR WIDTH (mm) | 640 | 640 | 680 | 680 | 680 | 680 |
| O | STEM LENGTH (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | CRANK LENGTH (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
