Giant

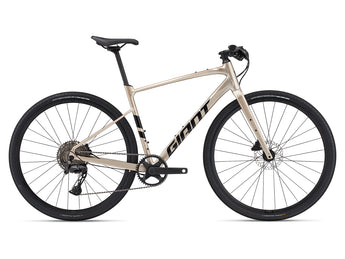

GIANT FASTROAD AR 1 (CUES)

$1,600.00

3 payments of $533.33 with

Color: Sandshell

Sandshell Electron Blue

Size: S

S M ML L XL

Product variants

Quantity

Pickup currently unavailable at Tay Junction @ Bukit Timah

Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.

Highlight

IMAGINE A QUICK AND AGILE ROAD BIKE BUT WITH GREATER VERSATILITY. WITH FLAT HANDLEBAR POSITIONING, SMOOTH COMPLIANCE AND WIDE TUBELESS TYRES, FASTROAD AR FREES YOU UP TO RIDE PAVED ROADS, BUMPY BIKE PATHS AND EVERYTHING IN BETWEEN.

KEY PERFORMANCE FACTORS

Lightweight efficiency

High-quality ALUXX aluminum frame and composite fork deliver efficient pedalling power for a smooth, fast ride on variable roads and paths.

Smooth, stable ride quality

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.

All-road capabilities

With clearance for high-volume tubeless tires (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

SPECIFICATIONS

Sizes

XS, S, M, M/L, L, XL

Colors

Sandshell, Electron Blue

Frame

ALUXX-Grade Aluminum

Fork

Advanced-Grade Composite, composite OverDrive steerer

Shock

N/A

Handlebar

Giant Sport, mini-rise, 31.8 XS:64cm, S:64cm, M:68cm, M/, L:68cm, XL:68cm

Grips

Giant ErgoContact

Stem

Giant Contact, 8-degree XS:70mm, S:80mm, M:90mm, M/, L:100mm, XL:110mm

Seatpost

Giant D-Fuse, composite, 350mm

Saddle

Giant ErgoContact

Pedals

platform pedal

Shifters

Shimano Cues U6000, SL-U600-11R, 1x11-speed

Front Derailleur

N/A

Rear Derailleur

Shimano Cues U6000 11 speed

Brakes

Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Tektro HD-R280

Cassette

Shimano CS-LG-40010, 11-45T

Chain

Shimano CN-LG500

Crankset

FSA Omega AGX+, 42t XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 172.5mm. Chainline 50mm.

Bottom Bracket

threaded

Rims

Giant S-X2 Disc wheelset

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Gavia Fondo AR, tubeless, 700x40c

Extras

tubeless prepared, 42mm max tyre size

Weight
~ 10.56kg (Size ML)

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Fastroad AR

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH (mm)	435	455	475	495	525	555
B	SEAT TUBE ANGLE	73.5°	73.5°	73.5°	73.0°	73.0°	73.0°
C	TOP TUBE LENGTH (mm)	545	560	575	590	610	630
D	HEAD TUBE LENGTH (mm)	110	130	155	175	200	225
E	HEAD TUBE ANGLE	70.5°	70.5°	71.0°	71.0°	71.5°	71.5°
F	FORK RAKE (mm)	50	50	50	50	50	50
G	TRAIL (mm)	74	74	70	70	67	67
H	WHEELBASE (mm)	1031	1047	1058	1069	1084	1105
I	CHAIN STAY LENGTH (mm)	435	435	435	435	435	435
J	BOTTOM BRACKET DROP (mm)	75	75	75	75	75	75
K	STACK (mm)	533	552	578	597	623	646
L	REACH (mm)	387	396	404	407	419	432
M	STAND OVER HEIGHT (mm)	718	736	756	773	800	826
N	HANDLEBAR WIDTH (mm)	640	640	680	680	680	680
O	STEM LENGTH (mm)	70	80	90	90	100	110
P	CRANK LENGTH (mm)	170	170	170	172.5	172.5	172.5
Q	WHEEL SIZE	700C	700C	700C	700C	700C	700C
