Giant

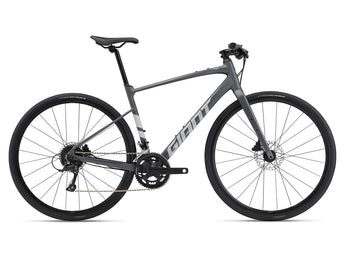

GIANT FASTROAD 2
Pickup currently unavailable at Tay Junction @ Bukit Timah
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Fastroad AR
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Fastroad AR
XS | S | M | ML | L | XL | ||
A | SEAT TUBE LENGTH (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
B | SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
C | TOP TUBE LENGTH (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
D | HEAD TUBE LENGTH (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
E | HEAD TUBE ANGLE | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 74 | 74 | 70 | 70 | 67 | 67 |
H | WHEELBASE (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
I | CHAIN STAY LENGTH (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
J | BOTTOM BRACKET DROP (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
K | STACK (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
L | REACH (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
M | STAND OVER HEIGHT (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
N | HANDLEBAR WIDTH (mm) | 640 | 640 | 680 | 680 | 680 | 680 |
O | STEM LENGTH (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
P | CRANK LENGTH (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
Highlight
BUILD FITNESS AND TAKE CARE OF YOUR HEALTH THE FUN WAY. THIS LIGHTWEIGHT FLYER COMBINES THE AGILITY OF A ROAD BIKE WITH THE ADDED CONTROL OF A FLAT HANDLEBAR.
KEY PERFORMANCE FACTORS
Light and agile
Advanced Composite frameset with updated geometry minimizes weight and produces a quick, nimble ride quality.
Smooth and comfortable
Innovative D-Fuse composite seatpost absorbs road vibrations and keeps you comfortable on longer rides.
Easy to accessorize
RideSense integrated data transmitter and smart-mount rack and fender system lets you customize the bike for fitness riding, commuting or long-range adventures.
SPECIFICATIONS
Sizes
XS, S, M, M/L, L, XL
Colors
Charcoal
Frame
ALUXX SL-Grade Aluminium, 142x12mm thru-axle
Fork
Advanced-Grade Composite, full carbon, OverDrive steerer, 100x12mm thru-axle
Shock
N/A
Handlebar
Giant Sport, 31.8mm, low rise
Grips
Giant ErgoContact Lock-on
Stem
Giant Contact, 8-degree XS:70mm, S:80mm, M:90mm, M/L:90mm, L:100mm, XL:110mm
Seatpost
Giant D-Fuse composite
Saddle
Giant ErgoContact
Pedals
Platform
Shifters
Shimano Sora, 2x9
Front Derailleur
Shimano Sora
Rear Derailleur
Shimano Sora
Brakes
Tektro HD-R280, flat mount, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers
Tektro
Cassette
Shimano CS-HG-200-9, 11-34
Chain
KMC X9 with Missing Link
Crankset
FSA Omega, 32/48T XS/S/M:170mm, ML/L/XL:172.5mm
Bottom Bracket
FSA MegaExo, threaded
Rims
Giant SX-2 Disc 700c Wheelset, [F] 100x12mm, [R] 142x12mm
Hubs
Alloy, 28h
Spokes
Stainless, 14g
Tyres
Giant Fondo 2, 700x32c
Extras
Tubeless prepared
- Weight
~10.40kg (Size M)
*All specifications and prices listed are subject to change without notice.
