Giant

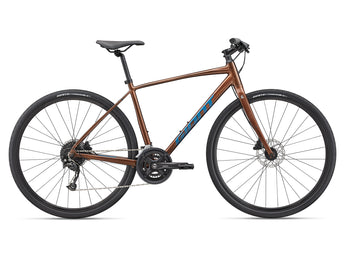

GIANT ESCAPE 1 DISC
Pickup currently unavailable at Tay Junction @ Bukit Timah
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Escape
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.
Escape
XS | S | M | L | XL | ||
A | SEAT TUBE LENGTH (mm) | 380 | 430 | 485 | 535 | 585 |
B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
C | TOP TUBE LENGTH (mm) | 550 | 565 | 580 | 595 | 610 |
D | HEAD TUBE LENGTH (mm) | 100 | 115 | 130 | 160 | 190 |
E | HEAD TUBE ANGLE | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 76 | 76 | 69.4 | 69.4 | 69.4 |
H | WHEELBASE (mm) | 1063 | 1074 | 1075 | 1091 | 1107 |
I | CHAIN STAY LENGTH (mm) | 445 | 445 | 445 | 445 | 445 |
J | BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 | 60 |
K | STACK (mm) | 524 | 538 | 556 | 585 | 613 |
L | REACH (mm) | 400 | 406 | 410 | 416 | 423 |
M | STAND OVER HEIGHT (mm) | 680 | 714 | 754 | 799 | 842 |
N | HANDLEBAR WIDTH (mm) | 600 | 640 | 640 | 690 | 690 |
O | STEM LENGTH (mm) | 80 | 90 | 90 | 100 | 100 |
P | CRANK LENGTH (mm) | 170 | 170 | 170 | 175 | 175 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
Highlight
THIS VERSATILE FLAT-BAR ALL-ROUNDER CAN GET YOUR LEGS SPINNING AND MOTIVATE YOU TO BE ACTIVE EVERY DAY. COMMUTE TO WORK, RIDE TO CLASS, FIND NEW ADVENTURES IN YOUR DAILY ROUTINE.
With its lightweight ALUXX aluminum frame, upright positioning and high-quality parts that give it a smooth, comfortable ride, the Escape Disc is totally versatile and totally fun to ride. It now features a high-quality composite fork* and innovative D-Fuse seatpost. Both are great for smoothing out rough roads, absorbing shocks and vibrations, and giving you a smoother, more comfortable ride. The disc brakes deliver powerful braking performance in dry or wet conditions, and the 700c wheels with Giant EasyRide Tubeless tires (on select models) keep you rolling with speed, efficiency and a reduced risk of flats. As an added bonus, there’s clearance for larger tires up to 45mm in width, which makes it easier to ride rougher roads. It comes with integrated mounts, so you can customize your ride with racks or fenders. Whatever road or path you choose, Escape Disc is ready to roll.
KEY PERFORMANCE FACTORS
Balanced and efficient
Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
Versatile and capable
Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
Rugged reliability
Puncture-resistant tires feature the Giant EasyRide Tubeless system (on select models). Integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
SPECIFICATIONS
Sizes
S, M, L, XL
Colors
Charcoal
Frame
ALUXX-Grade Aluminum, disc
Fork
Advanced-Grade Composite, composite OverDrive steerer, disc
Shock
N/A
Handlebar
Giant Sport XC, 31.8
Stem
Giant Sport, 15-degree, 31.8
Seatpost
Giant D-Fuse, alloy
Saddle
Giant Sport Comfort
Pedals
Giant Urban Fitness
Shifters
Shimano Altus
Front Derailleur
Shimano Acera
Rear Derailleur
Shimano Alivio
Brakes
Tektro HD-R280
Brake Levers
Tektro
Cassette
Shimano CS-HG200, 11x36
Chain
KMC X9 with Missing Link
Crankset
Shimano MT-210, 30/46
Bottom Bracket
Shimano SM-BB52
Rims
Giant GX wheelset
Hubs
Giant GX wheelset, QR
Spokes
Giant GX wheelset
Tires
Giant S-X2, puncture protect, 700x38c
Extras
pedals, bell, front and rear reflectors
Weight
~ 11.22kg (size S)
*All specifications and prices listed are subject to change without notice.
